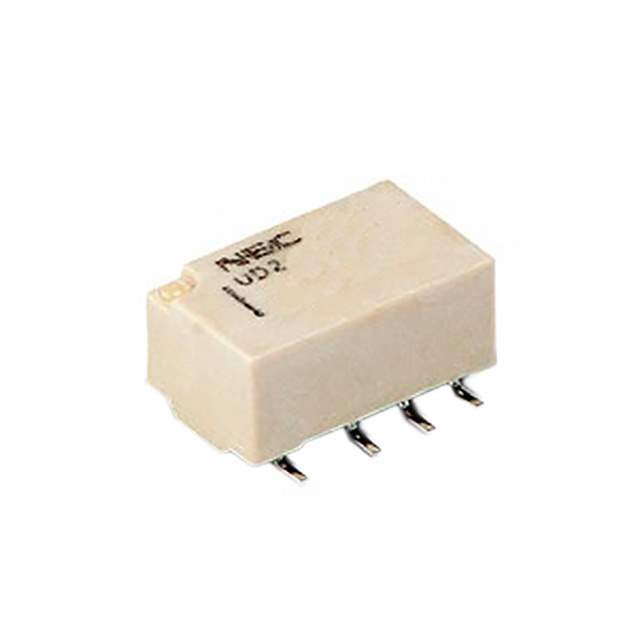

Same model may have multiple batches, images only for reference.

UD2-12NU

Name: UD2-12NU
Brand: Kemet
SKU: 386713
Availability: InStock
Rating: 4.93 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UD2-12NU
Manufacturer	Kemet
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY GEN PURPOSE DPDT 1A 12V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Kemet
Packaging	Tube/Rail
Status	Active
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	11.7mA
Coil Voltage	12VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1A
Switching Voltage	250VAC, 220VDC - Max
Turn On Voltage (Max)	9 VDC
Turn Off Voltage (Min)	1.2 VDC
Operate Time	2ms
Release Time	1ms
Mounting	SMD (SMT)
Termination Style	Gull Wing
Coil Power	140 mW
Coil Resistance	1.03 kOhms
Temperature Range - Operating	-40°C to 85°C
Win Source Part Number	125417-UD2-12NU
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian UD2-12NU CAD Model

Alternative Products

Description

The Kemet UD2-12NU is a general-purpose non-latching relay with DPDT contact form and SMD (SMT) mounting. It is an active product with medium popularity and limited supply and demand status in the market.

Coil Voltage: 12VDC
Coil Resistance: 1.03 kOhms
Coil Current: 11.7mA
Operate Time: 2ms
Contact Rating: 1A
Switch Voltage: Up to 250VAC and 220VDC
Control Protection Features: Over current and over temperature
