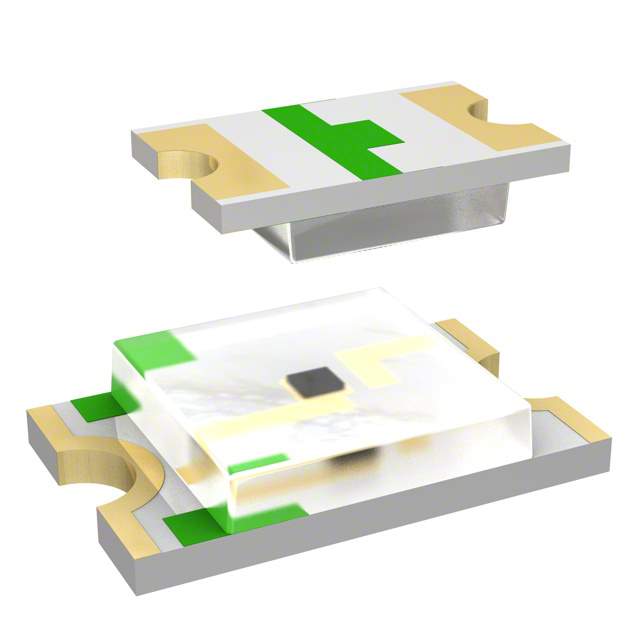

APHCM2012CGCK-F01 Real Image
Same model may have multiple batches, images only for reference.

APHCM2012CGCK-F01

Part No APHCM2012CGCK-F01
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN CLEAR CHIP SMD  /  Green 570nm LED Indication - Discrete 2.1V 0805 (2012 Metric)
Datasheet
APHCM2012CGCK-F01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 50mcd
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.25mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 110°
Mounting SMD (SMT)
Wavelength - Dominant 570nm
Wavelength - Peak 574nm
Package / Case 0805 (2012 Metric)
Supplier Device Package Chip LED
Dimension 2.00mm L x 1.25mm W
Height (Max) 0.40mm
Base Product Number APHCM2012
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1094-1,754-1094-2,APHCM2012CGCKF01,754-1094-6
Standard Package 2,000
Win Source Part Number 1187312-APHCM2012CGCK-F01
Ultra Librarian 3D Model Ultra Librarian APHCM2012CGCK-F01 CAD Model

Description

The APHCM2012CGCK-F01 is a chip LED from Kingbright, in the Optoelectronics category.

  • Color: Green
  • Viewing Angle: 110 degrees
  • Millicandela Rating: 50mcd
  • Forward Voltage: 2.1V
  • Forward Current: 20mA
  • Wavelength of Dominant Color: 570nm
  • Peak Wavelength: 574nm
  • Package: 0805 (2012 Metric)
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.30mm x 1.25mm
  • Height: 0.40mm
  • Packaging: Tape and reel
  • Standard Package: 2,000
  • Mounting: SMD (SMT)
  • Configuration: Standard
