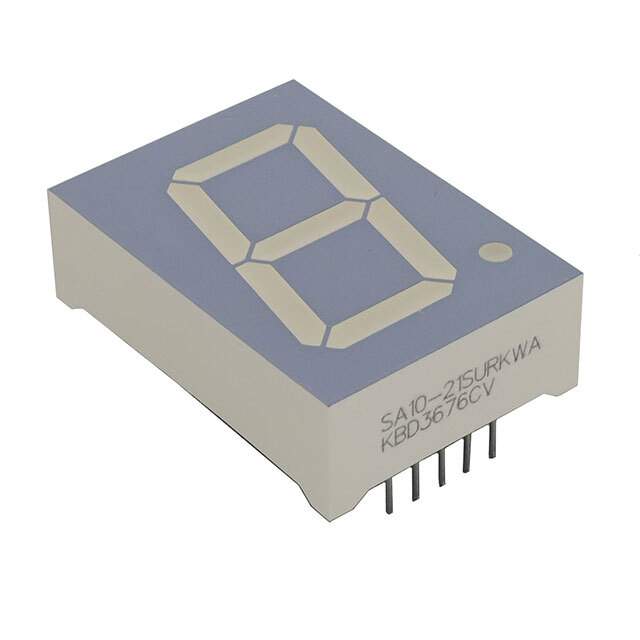

SA10-21SURKWA Real Image
Same model may have multiple batches, images only for reference.

SA10-21SURKWA

Part No SA10-21SURKWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 1" SGL RED 10DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 1.339" H x 0.551" W x 0.413" D (34.00mm x 14.00mm x 10.50mm) 10-DIP (1.197", 30.40mm)
Datasheet
SA10-21SURKWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 1.339" H x 0.551" W x 0.413" D (34.00mm x 14.00mm x 10.50mm)
Digit/Alpha Size 1.00" (25.40mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Millicandela Rating 260mcd
Wavelength - Peak 645nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (1.197", 30.40mm)
Base Product Number SA10-21
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242601-SA10-21SURKWA
Ultra Librarian 3D Model Ultra Librarian SA10-21SURKWA CAD Model

Description

The Kingbright SA10-21SURKWA is a red 7-segment display module with a digit/alpha size of 1.00" (25.40mm) and a common anode.

  • Millicandela Rating: 260mcd
  • Forward Voltage: 1.95V (typical) @ 20mA
  • Peak Wavelength: 645nm
  • Power Dissipation: 75mW (max)
  • Package: 10-DIP (1.197", 30.40mm)
  • Dimensions: 1.339" H x 0.551" W x 0.413" D (34.00mm x 14.00mm x 10.50mm)
  • REACH: Unaffected
  • ECCN: EAR99
