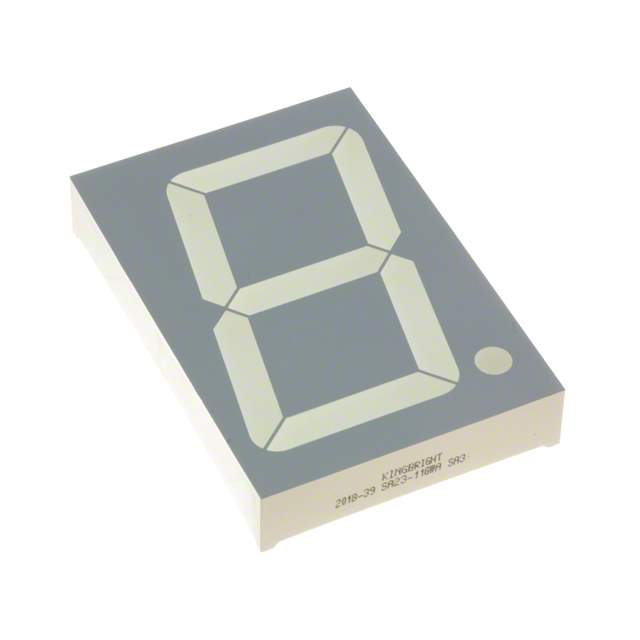

SA23-11GWA Real Image
Same model may have multiple batches, images only for reference.

SA23-11GWA

Part No SA23-11GWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 2.24" SGL GRN 10DIP  /  Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 8.8V 20mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.370", 60.10mm)
Datasheet
SA23-11GWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm)
Digit/Alpha Size 2.24" (56.90mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) (Typ) 8.8V
Current - Test 20mA
Millicandela Rating 65mcd
Wavelength - Peak 565nm
Power Dissipation (Max) 250mW
Package / Case 10-DIP (2.370", 60.10mm)
Base Product Number SA23-11
Other Names SA23-11GWA,754-2272
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242587-SA23-11GWA
Ultra Librarian 3D Model Ultra Librarian SA23-11GWA CAD Model

Description

The SA23-11GWA is a 7-segment LED display module from Kingbright.

  • Color: Green
  • Common Pin: Common Anode
  • Display Type: 7-Segment
  • Digit/Character Size: 2.24 inches (56.90mm)
  • Forward Voltage (Vf): 8.8V
  • Current Test: 20mA
  • Wavelength Peak: 565nm
  • Power Dissipation: 250mW
  • Millicandela Rating: 65mcd
  • Package Dimension: 2.756 inches H x 1.890 inches W x 0.472 inches D (70.00mm x 48.00mm x 12.00mm)
  • Package: 10-DIP (10 standard modules)
