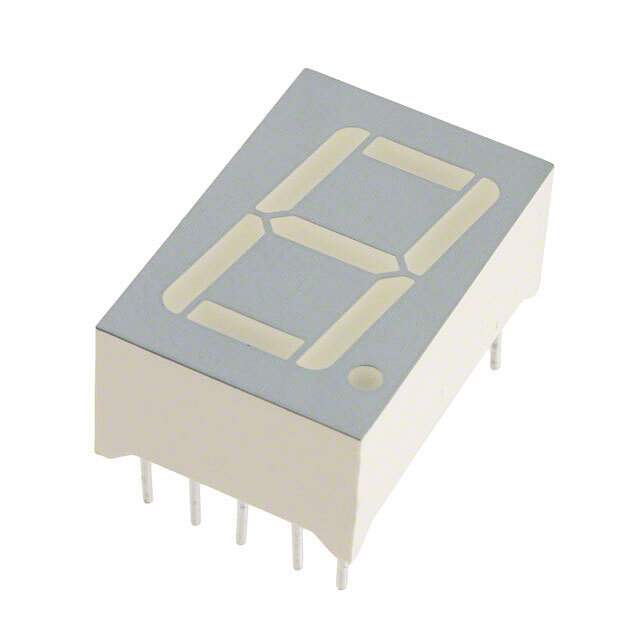

SC56-21SRWA Real Image
Same model may have multiple batches, images only for reference.

SC56-21SRWA

Part No SC56-21SRWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL RED 10DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.85V 20mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Datasheet
SC56-21SRWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Product Status Obsolete
Number of Characters 1
Dimension 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Millicandela Rating 34mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number SC56-21
Other Names 754-1705-5,SC56-21SRWA
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242566-SC56-21SRWA
Ultra Librarian 3D Model Ultra Librarian SC56-21SRWA CAD Model

Description

The SC56-21SRWA is a 7-segment LED display module manufactured by Kingbright.

  • Color: Red
  • Package: Tube (40 standard packages)
  • Win Source Part Number: 1242566-SC56-21SRWA
  • Millicandela Rating: 34mcd
  • Forward Voltage: 1.85V
  • Test Current: 20mA
  • Peak Wavelength: 660nm
  • Power Dissipation: 75mW
  • Common Pin: Common Cathode
  • Digit/Alpha Size: 0.56" (14.22mm)
  • Package/Case: 10-DIP (0.600", 15.24mm)
  • Dimension: 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
  • Status: Obsolete
