Same model may have multiple batches, images only for reference.

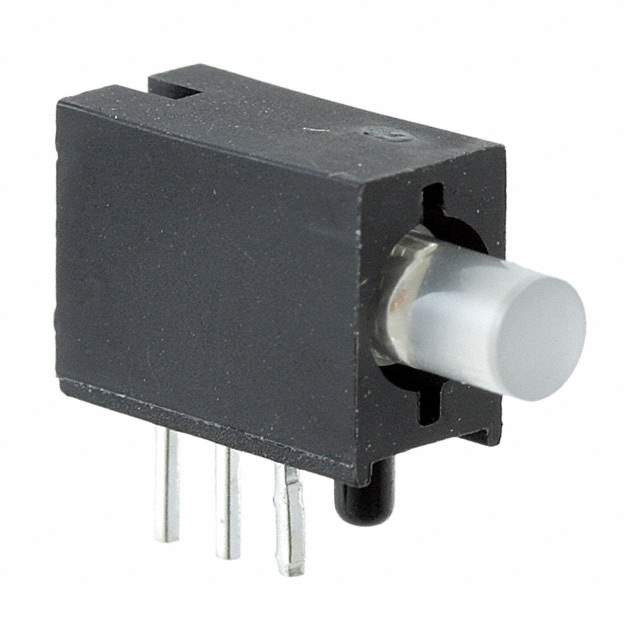

WP42WUM/EGW Real Image
Same model may have multiple batches, images only for reference.

WP42WUM/EGW

Part No WP42WUM/EGW
Manufacturer Kingbright
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA RED/GRN WHT DIFF TH / LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
WP42WUM/EGW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Kingbright
Package Bulk
Color Green, Red
Wavelength - Peak 565nm, 627nm
Configuration Single
Current 25mA Green, 30mA Red
Millicandela Rating 12mcd Green, 8mcd Red
Viewing Angle 100°
Lens Type Diffused, White
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 2.2V Green, 2V Red
Mounting Type Through Hole, Right Angle
Base Product Number WP42WUM
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1336911-WP42WUM/EGW
Ultra Librarian 3D Model Ultra Librarian WP42WUM/EGW CAD Model

Description

The WP42WUM/EGW is an optoelectronics circuit board indicator from Kingbright.

  • Configuration: Single
  • Viewing Angle: 100 degrees
  • Millicandela Rating: 12mcd for green and 8mcd for red
  • Voltage Rating: 2.2V for green and 2V for red
  • Lens Type: Diffused and White
  • Lens Shape: Round Domed Top
  • Lens Size: 3mm, T-1
  • Package: Bulk
  • Standard Package: 1,000
  • Mounting Type: Through Hole, Right Angle
  • Wavelength-Peak: 565nm for green and 627nm for red
  • Current: 25mA for green and 30mA for red
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
