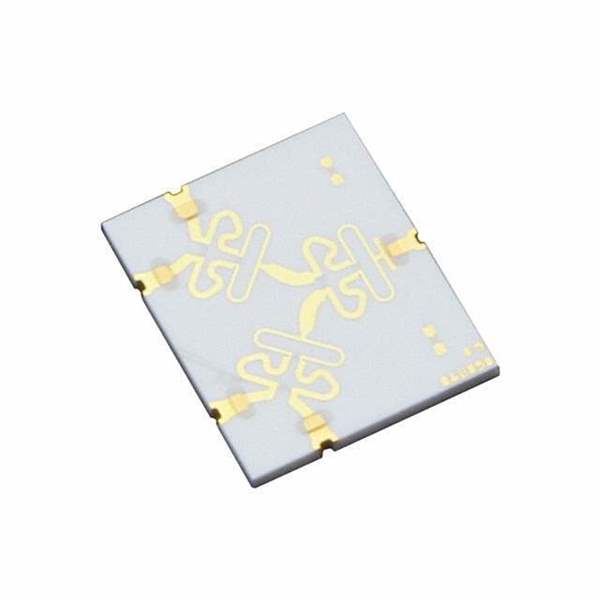

PDW06089 Knowles Dielectric Labs
Same model may have multiple batches, images only for reference.

PDW06089

Part No PDW06089
Manufacturer Knowles Dielectric Labs
Catalog RF Power Dividers/Splitters
Description RF PWR DIVIDER 6GHZ-18GHZ MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208145-PDW06089
Manufacturer Knowles Dielectric Labs
Category RF and Wireless- RF Power Dividers/Splitters
Package Bulk
Product Status Active
Insertion Loss 1dB
Frequency 6 GHz ~ 18 GHz
Specifications Isolation (Min) 14dB, 14dB Return Loss, 3° Imbalance (Max)
Size / Dimension 0.300" L x 0.250" W x 0.020" H (7.62mm x 6.35mm x 0.51mm)
Package / Case Module
Base Product Number PDW06089
Ultra Librarian 3D Model Ultra Librarian PDW06089 CAD Model

Description

DLI’s 6-18GHz 4-way power divider / combiner offers unmatched size and performance in a surface mount configuration. This power divider utilizes DLI’s low loss temperature stable materials which offer small size and minimal performance variation over temperature.
