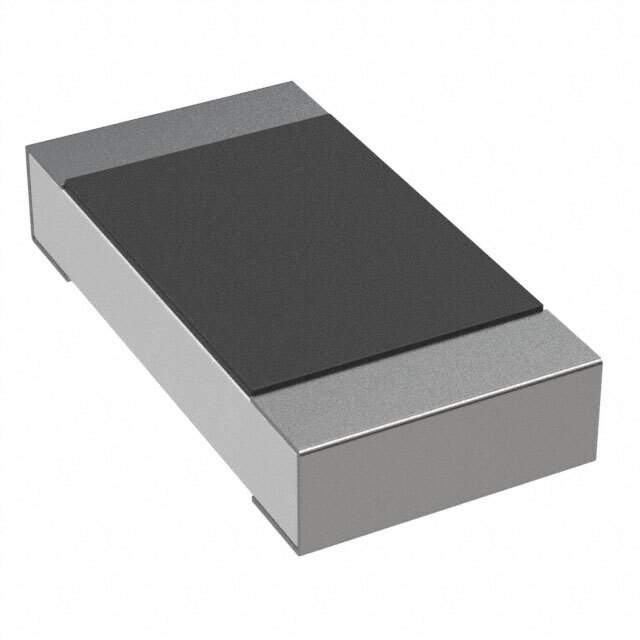

Same model may have multiple batches, images only for reference.

RK73B2BTTD4R7J

Name: RK73B2BTTD4R7J
Brand: KOA Speer
SKU: 1331643
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RK73B2BTTD4R7J
Manufacturer	KOA Speer
Catalog	Chip Resistor - Surface Mount
Description	RES 4.7 OHM 5% 1/4W 1206 / 4.7 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
Datasheet	RK73B2BTTD4R7J Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	KOA Speer Electronics, Inc.
Packaging	Reel - TR
Resistance	4.7 Ohms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	1206 (3216 Metric)
Supplier Device Package	1206
Ratings	AEC-Q200
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.028" (0.70mm)
Number of Terminations	2
Base Product Number	RK73B2B
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	2019-RK73B2BTTD4R7JTR,2019-RK73B2BTTD4R7JDKR,2019-RK73B2BTTD4R7JCT
Standard Package	5,000
Win Source Part Number	1331643-RK73B2BTTD4R7J
Ultra Librarian 3D Model	Ultra Librarian RK73B2BTTD4R7J CAD Model

Alternative Products

Description

The RK73B2BTTD4R7J chip resistor from KOA Speer Electronics is a high-quality thick film resistor with a resistance of 4.7 Ohms and a power rating of 0.25W or 1/4W.

Tolerance: ±5%
Temperature Coefficient: ±200ppm/°C
Application: automotive applications
AEC-Q200 rated: yes
Package: 1206 (3216 Metric)
Terminations: 2
Temperature Range: -55°C to 155°C
Packaging: reel - TR packaging
Standard Package: 5,000
