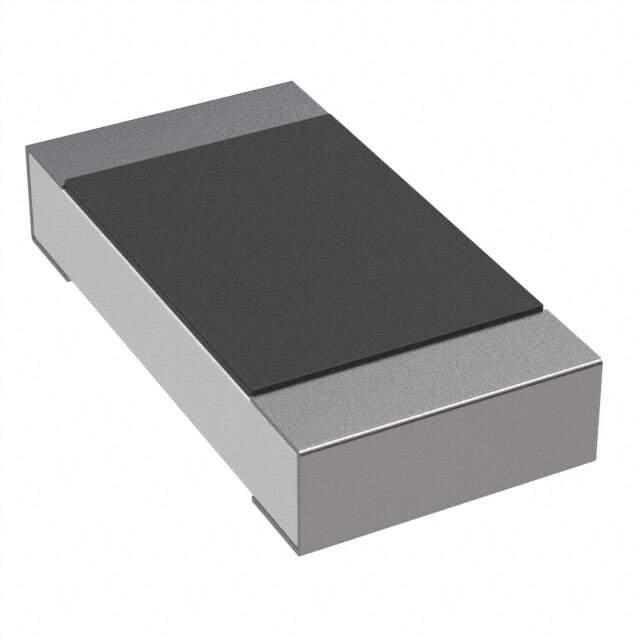

RK73B2BTTD820J Real Image
Same model may have multiple batches, images only for reference.

RK73B2BTTD820J

Part No RK73B2BTTD820J
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 82 OHM 5% 1/4W 1206 / 82 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
Datasheet
RK73B2BTTD820J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer KOA Speer Electronics, Inc.
Packaging Reel - TR
Resistance 82 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number RK73B2B
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 2019-RK73B2BTTD820JCT,2019-RK73B2BTTD820JTR,2019-RK73B2BTTD820JDKR
Standard Package 5,000
Win Source Part Number 1328625-RK73B2BTTD820J
Ultra Librarian 3D Model Ultra Librarian RK73B2BTTD820J CAD Model

Description

The KOA Speer Electronics, Inc. electronic component with Win Source Part Number 1328625-RK73B2BTTD820J is a chip resistor used for surface mount purposes.

  • AEC-Q200 Rated: True
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.25W or 1/4W
  • Resistance: 82 Ohms
  • Package Type: 1206 (3216 Metric)
  • Supplier Device Package: 1206
  • Operating Temperature Range: -55°C to 155°C
  • Popularity: High
  • ROHS3 Compliant: True
