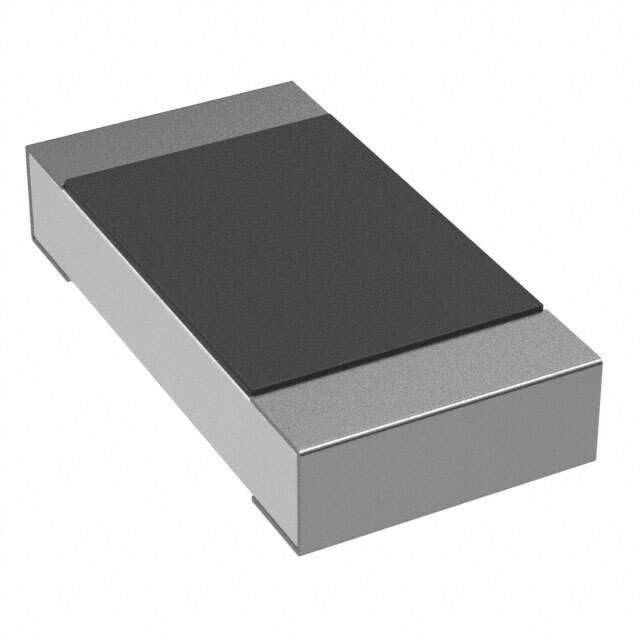

RN73H2BTTD3571F25 Real Image
Same model may have multiple batches, images only for reference.

RN73H2BTTD3571F25

Part No RN73H2BTTD3571F25
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 3.57K OHM 1% 1/4W 1206 / 3.57 kOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Moisture Resistant Metal Film
Datasheet
RN73H2BTTD3571F25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series RN73H
Package Tape & Reel
Resistance 3.57 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number RN73H2B
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1346210-RN73H2BTTD3571F25
Ultra Librarian 3D Model Ultra Librarian RN73H2BTTD3571F25 CAD Model

Description

The RN73H2BTTD3571F25 is a chip resistor surface-mount component manufactured by KOA Speer Electronics, Inc.

  • Composition: Metal Film
  • Resistance: 3.57 kOhms
  • Power Rating: 0.25W (1/4W)
  • Tolerance: ±1%
  • Temperature Coefficient: ±25ppm/°C
  • AEC-Q200 Rated: Yes
  • Package Size: 1206 (3216 Metric)
  • Device Package: 1206
  • Height-Seated (Max): 0.028” (0.70mm)
  • Size/Dimension: 0.126” L x 0.063” W (3.20mm x 1.60mm)
  • Moisture Resistant: Yes
  • Temperature Range: -55°C to 155°C
