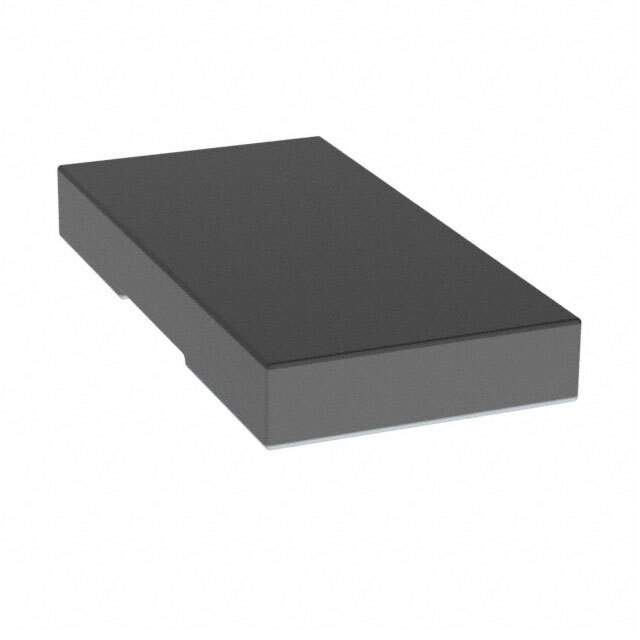

TLR3APDTE1L00F75 Real Image
Same model may have multiple batches, images only for reference.

TLR3APDTE1L00F75

Part No TLR3APDTE1L00F75
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 0.001 OHM 1% 5W 2512  /  1 mOhms ±1% 5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
Datasheet
TLR3APDTE1L00F75 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series TLR
Package Tape & Reel
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.033" (0.85mm)
Number of Terminations 2
Base Product Number TLR3A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2019-TLR3APDTE1L00F75DKR,2019-TLR3APDTE1L00F75TR,2019-TLR3APDTE1L00F75CT
Standard Package 2,000
Win Source Part Number 975227-TLR3APDTE1L00F75
Ultra Librarian 3D Model Ultra Librarian TLR3APDTE1L00F75 CAD Model

Description

This chip resistor is a surface mount resistor that belongs to the TLR series manufactured by KOA Speer Electronics, Inc.

  • Win Source Part Number: 975227-TLR3APDTE1L00F75
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Power Rating: 5W
  • Resistance: 1 mOhms
  • Operating Temperature: -65°C and 170°C
