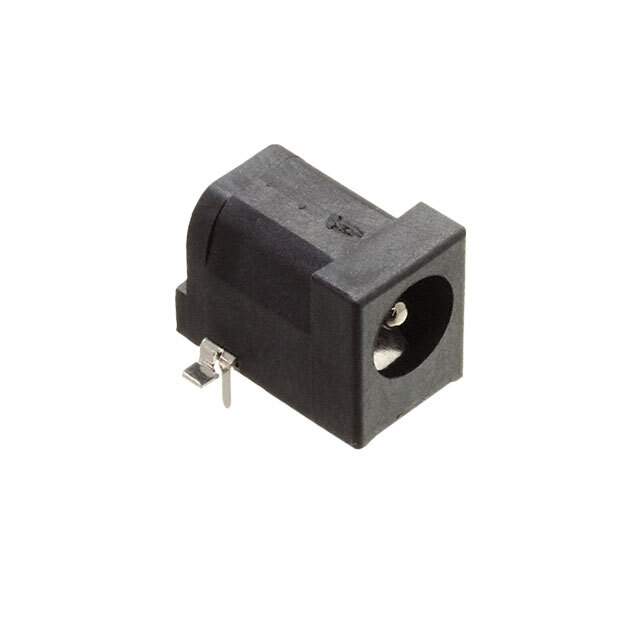

KLDX-SMT-0202-APTR Real Image
Same model may have multiple batches, images only for reference.

KLDX-SMT-0202-APTR

Part No KLDX-SMT-0202-APTR
Manufacturer Kycon, Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2X5.5MM SMT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kycon, Inc.
Packaging Reel
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Style Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Features Solder Retention
Voltage - Rated 24VDC
Current Rating (Amps) 3.5A
Material Flammability Rating UL94 V-0
Contact Material - Plating Silver
Temperature Range - Operating -25°C ~ 85°C
Housing Material Thermoplastic
Contact Material Brass, Phosphor Bronze
Body Color Black
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812484-KLDX-SMT-0202-APTR
Ultra Librarian 3D Model Ultra Librarian KLDX-SMT-0202-APTR CAD Model

Description

The KLDX-SMT-0202-APTR connector is a male jack connector from KLDX.

  • Mounting: Through-hole, right-angle
  • Conductors: 2
  • Contacts: 3
  • Voltage Rating: 24VDC
  • Current Rating: 3.5A
  • Contact Material: Brass, phosphor bronze
  • Contact Plating: Silver
  • Housing Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Packaging: Reel
  • Manufacturer Pack Quantity: 250
  • Operating Temperature Range: -25°C to 85°C
