28A4155-0A2
Same model may have multiple batches, images only for reference.

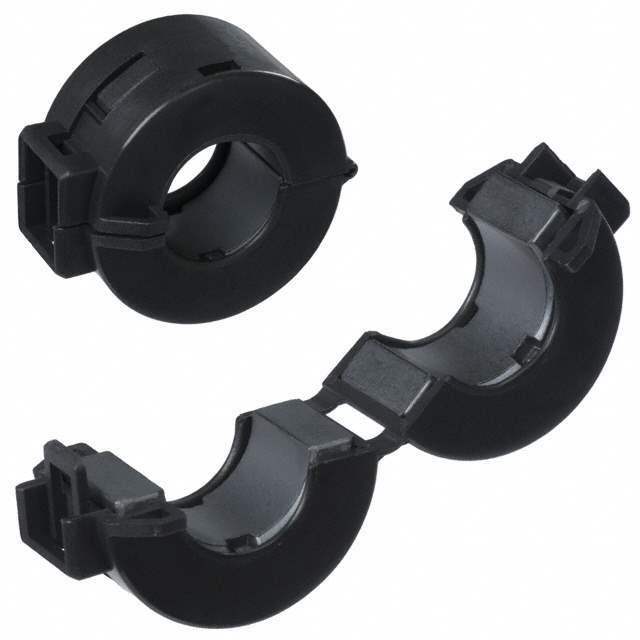

28A4155-0A2

Part No 28A4155-0A2
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 120 OHM HINGED 15MM
Datasheet
28A4155-0A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206242-28A4155-0A2
Manufacturer Laird-Signal Integrity Products
Category Filters-Cable Ferrites
Series 28
Package Tray
Product Status Active
Type Round
Design Hinged (Snap On)
Inner Dimension 0.591" Dia (15.00mm)
Outer Dimension 1.307" W x 1.134" H (33.20mm x 28.80mm)
Mounting Type Free Hanging
Ultra Librarian 3D Model Ultra Librarian 28A4155-0A2 CAD Model

Description

For retrofit and post-assembly operations, a selection of high frequency EMI “split” cores are offered. Similar in performance to one-piece cylindrical core designs, these split ferrite cores provide excellent common and differential mode high frequency EMI suppression on round cable and wire assemblies. Black plastic snap-on cases provide secure closure of the split cores onto the cable or wire bundle.
