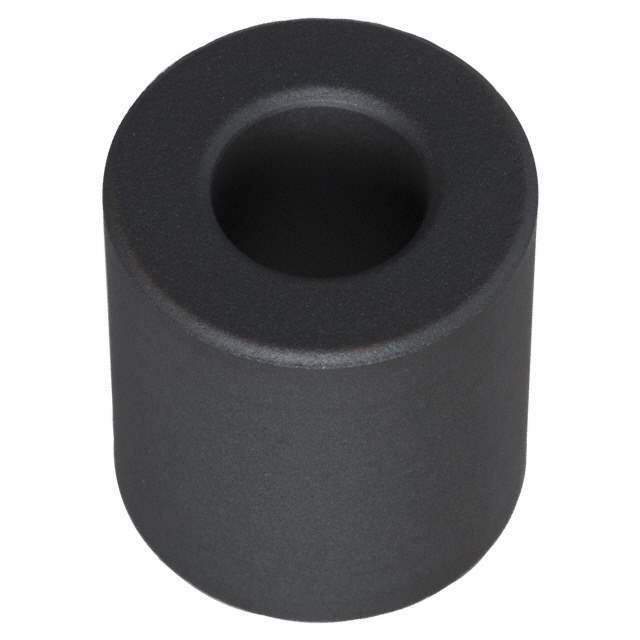

28B1020-100 Laird-Signal Integrity Products
Same model may have multiple batches, images only for reference.

28B1020-100

Part No 28B1020-100
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 276 OHM SOLID
Datasheet
28B1020-100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206164-28B1020-100
Manufacturer Laird-Signal Integrity Products
Category Filters-Cable Ferrites
Series 28
Package Tray
Product Status Active
Type Round
Design Solid
Impedance @ Frequency 276Ohm @ 100MHz
Material 28
Mounting Type Free Hanging
Ultra Librarian 3D Model Ultra Librarian 28B1020-100 CAD Model

Description

For retrofit and post-assembly operations, a selection of high frequency EMI “split” cores are offered. Similar in performance to one-piece cylindrical core designs, these split ferrite cores provide excellent common and differential mode high frequency EMI suppression on round cable and wire assemblies. Black plastic snap-on cases provide secure closure of the split cores onto the cable or wire bundle.
