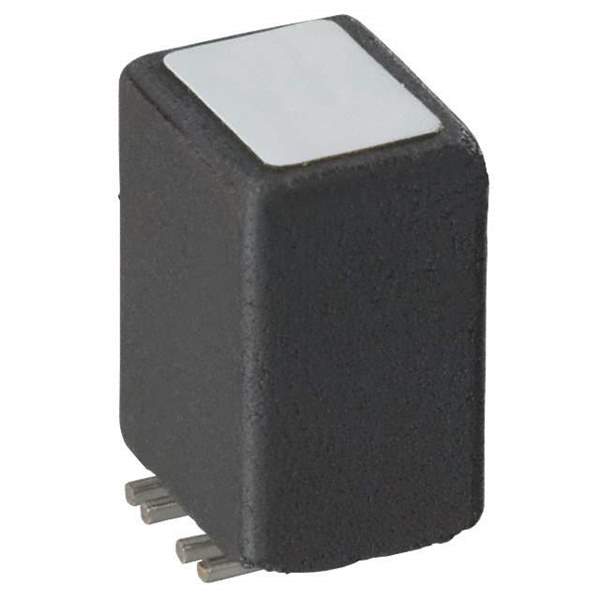

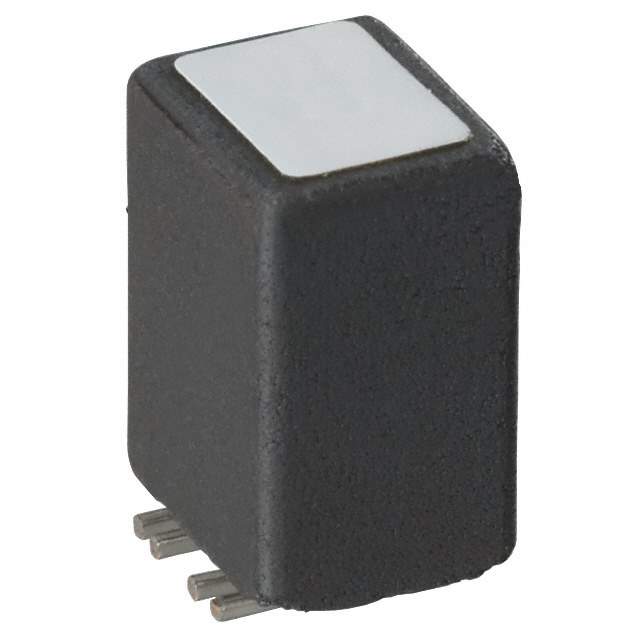

CM2722R201R-10 Real Image
Same model may have multiple batches, images only for reference.

CM2722R201R-10

Part No CM2722R201R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 5A 4LN 200 OHM SMD
Datasheet
CM2722R201R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 10 Weeks
Features 4 Line Common Mode Choke Surface Mount 5A DCR 20mOhm
Manufacturer Laird-Signal Integrity Products
Series CM
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Vertical, 8 Flat Lead
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number CM2722R201R10, 240-2471-1, 240-2471-2, 240-2471-6
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866868-CM2722R201R-10
Ultra Librarian 3D Model Ultra Librarian CM2722R201R-10 CAD Model

Description

The Laird-Signal Integrity Products 866868-CM2722R201R-10 is a surface mount common mode choke that has a current rating of 5A and a DCR of 20mOhm.

  • Current Rating: 5A
  • DCR: 20mOhm
  • Package: 4 Line
  • Package Type: Vertical, 8 Flat Lead
  • Packaging: Reel - TR
  • Supply and Demand: Limited
  • Quantity per Package: 500
  • Estimated Production Lead Time: 10 weeks
  • REACH: Unaffected
  • ECCN: EAR99
