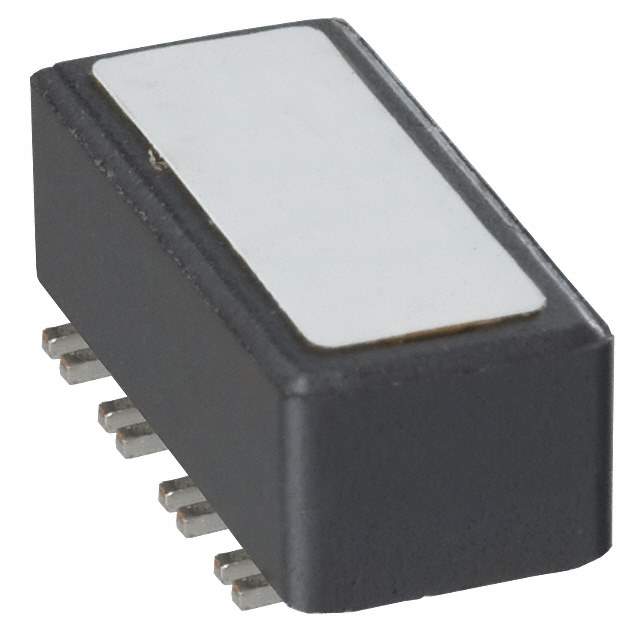

CM5022R800R-00 Real Image
Same model may have multiple batches, images only for reference.

CM5022R800R-00

Part No CM5022R800R-00
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 5A 8LN 80 OHM SMD
Datasheet
CM5022R800R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power Line
Number of Lines 8
Impedance @ Frequency 80 Ohm @ 100MHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 20 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.197" (5.00mm)
Dimension Vertical, 16 Flat Lead
Win Source Part Number 105922-CM5022R800R-00
Popularity Medium
Supply and Demand Status Balance
