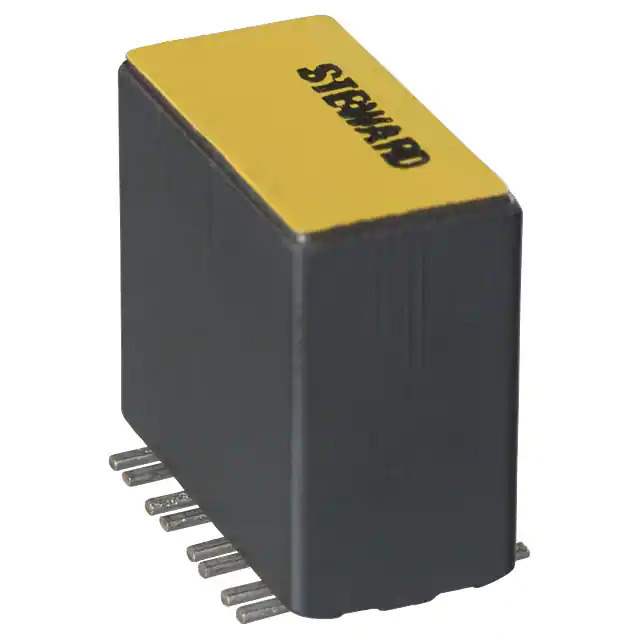

CM6032V301R-10 Real Image
Same model may have multiple batches, images only for reference.

CM6032V301R-10

Part No CM6032V301R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 8A 8LN 300 OHM SMD
Datasheet
CM6032V301R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Laird-Signal Integrity Products
Series CM
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 8
Impedance @ Frequency 300 Ohms @ 100 MHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 10mOhm
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.600" L x 0.430" W (15.24mm x 10.92mm)
Height (Max) 0.595" (15.11mm)
Package / Case Vertical, 16 Flat Lead
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 579482-CM6032V301R-10
Ultra Librarian 3D Model Ultra Librarian CM6032V301R-10 CAD Model

Description

The CM6032V301R-10 is a common mode choke designed for power line filtering applications. Laird-Signal Integrity Products.

  • Type: Common Mode Choke
  • Application: Power Line Filtering
  • Size: 0.600" L x 0.430" W (15.24mm x 10.92mm)
  • Height (Max): 0.595" (15.11mm)
  • Mounting: Surface Mount
  • Current (Max): 8A
  • DC Resistance: 10mOhm
  • Impedance: 300 Ohms @ 100 MHz
  • Package: Tape & Reel
  • Leads: 16 Flat Leads
  • Temperature Range: -40°C to 125°C
  • Status: Active
  • Manufacturer: Laird-Signal Integrity Products
