Same model may have multiple batches, images only for reference.

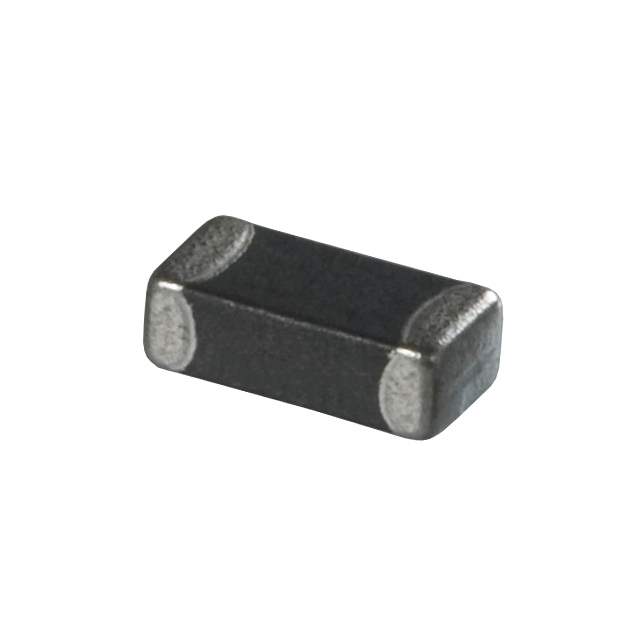

HI1206N800R-00 Real Image
Same model may have multiple batches, images only for reference.

HI1206N800R-00

Part No HI1206N800R-00
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 80 OHM 1206 1LN
Datasheet
HI1206N800R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Number of Lines 1
Impedance @ Frequency 80 Ohm @ 100MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 35 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Win Source Part Number 097733-HI1206N800R-00
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HI1206N800R-00 CAD Model

Description

Laird-Signal Integrity Products' obsolete (EOL) filter 097733-HI1206N800R-00 is a high-quality filter that has a current rating (max) of 3A. With a mounting type of SMD (SMT), this filter has an impedance of 80 Ohm at 100MHz and a DC resistance (DCR) (max) of 35 mOhm. This filter is part of the Filters category and has an operating temperature range of -40°C to 125°C. Its dimension is 0.126 inches L x 0.063 inches W (3.20mm x 1.60mm). Its supply and demand status is sufficient.
