Same model may have multiple batches, images only for reference.

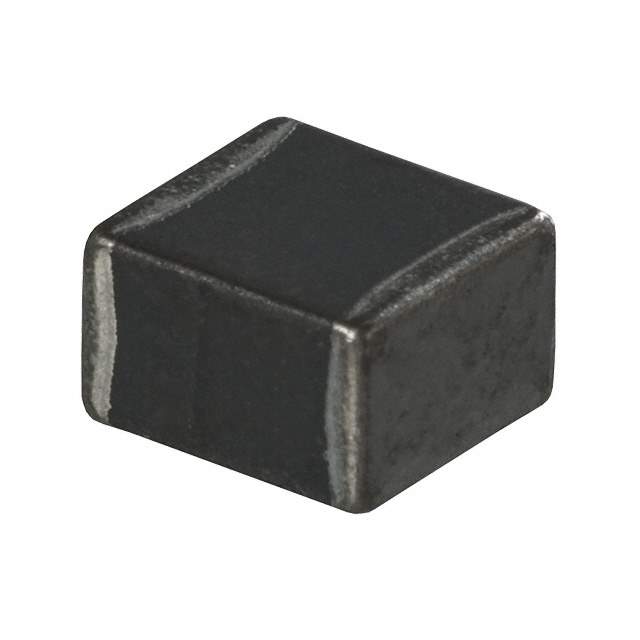

HI2220R181R-10 Real Image
Same model may have multiple batches, images only for reference.

HI2220R181R-10

Part No HI2220R181R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 180 OHM 2220 1LN
Datasheet
HI2220R181R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 7 Weeks
Features 180 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 2220 (5650 Metric) 5A 20mOhm
Manufacturer Laird-Signal Integrity Products
Series HI
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 2220 (5650 Metric)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number Q7165861BF, 240-2546-6, 240-2546-2, 240-2546-1, HI2220R181R10
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873557-HI2220R181R-10
Ultra Librarian 3D Model Ultra Librarian HI2220R181R-10 CAD Model

Description

The Laird-Signal Integrity Products HI series ferrite bead is a power and signal line filter designed to reduce electromagnetic interference (EMI) in electronic circuits.

  • Impedance @ 100 MHz: 180 Ohm
  • Current Rating: 5A
  • Resistance: 20mOhm
  • Package Size: 2220 (5650 Metric)
  • Mounting Style: Surface Mountable
  • Series: HI series
