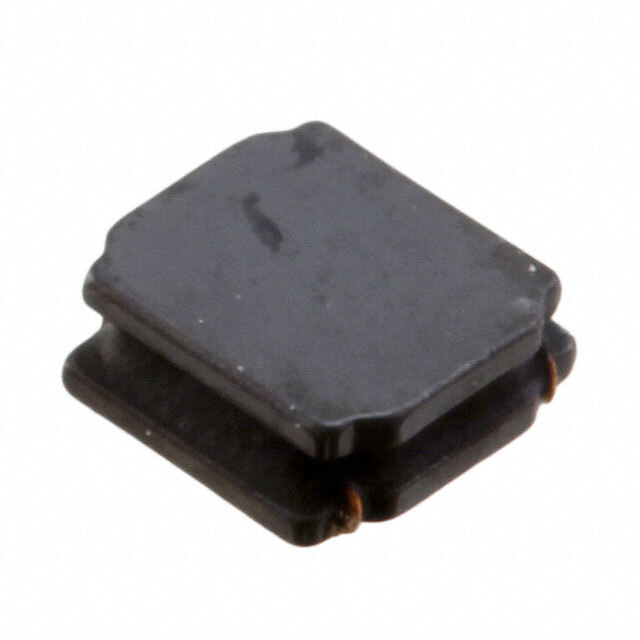

TYS40302R2N-10

Part No TYS40302R2N-10
Manufacturer Laird-Signal Integrity Products
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.95A 39MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Wirewound
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 2.95 A
Current - Saturation (Isat) 4.9A
Shielding Shielded
DC Resistance (DCR) 39mOhm Max
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Case / Package Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.118\
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1533251-TYS40302R2N-10
Ultra Librarian 3D Model Ultra Librarian TYS40302R2N-10 CAD Model
