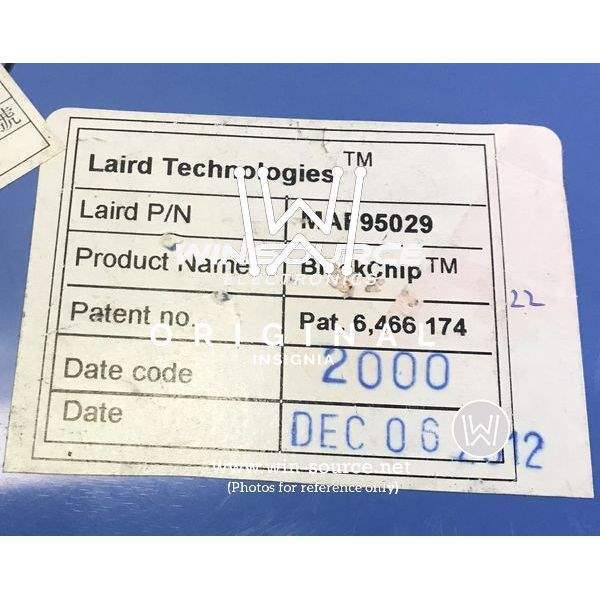

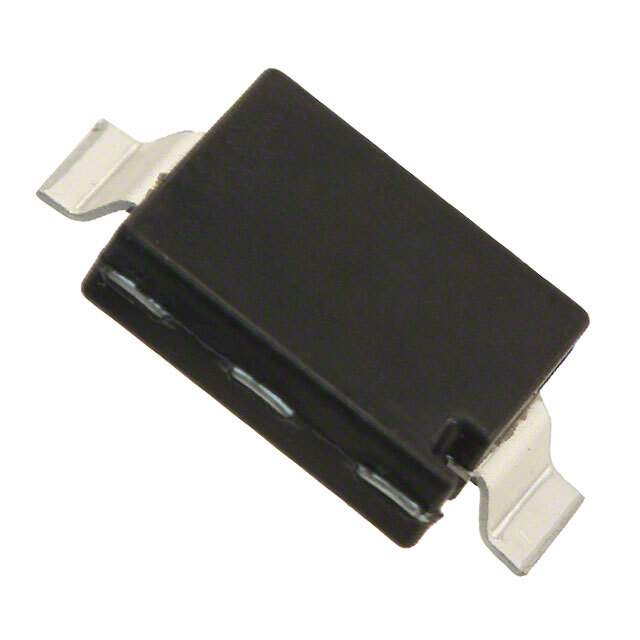

MAF95029 Laird Technologies IAS MAF95029 Real Image MAF95029 Real Image MAF95029 label picture 2 MAF95029 real image
Same model may have multiple batches, images only for reference.
MAF95029 Laird Technologies IAS MAF95029 Real Image MAF95029 Real Image MAF95029 label picture 2 MAF95029 real image
MAF95029 Laird Technologies IAS MAF95029 Real Image MAF95029 Real Image MAF95029 label picture 2 MAF95029 real image
Same model may have multiple batches, images only for reference.

MAF95029

Part No MAF95029
Manufacturer Laird Technologies IAS
Catalog RF Antennas
Description ANTENNA 4DB TRI-BAND
Datasheet
MAF95029 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Laird Technologies IAS
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) 2.4GHz, 5.5GHz
Frequency Range 2.4GHz to 2.5GHz, 4.9GHz to 6GHz
Antenna Type Chip
Number of Bands 2
VSWR 2
Gain 2dBi, 3dbi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.098" (2.50mm)
Applications Bluetooth, WiMax, WLAN
Win Source Part Number 1065645-MAF95029
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MAF95029 CAD Model

Description

The MAF95029 is an electronic component manufactured by Laird Technologies IAS. It is a chip antenna designed for use in Bluetooth, WiMax, and WLAN applications. This component is mounted using SMD (SMT) technology and has a frequency range of 2.4GHz to 2.5GHz and 4.9GHz to 6GHz. The MAF95029 is a UHF (2 GHz to 3 GHz) and SHF (f > 4 GHz) frequency group component with 2 bands. It has a VSWR of 2 and a gain of 2dBi and 3dbi. The supply and demand status of this component is balanced.
