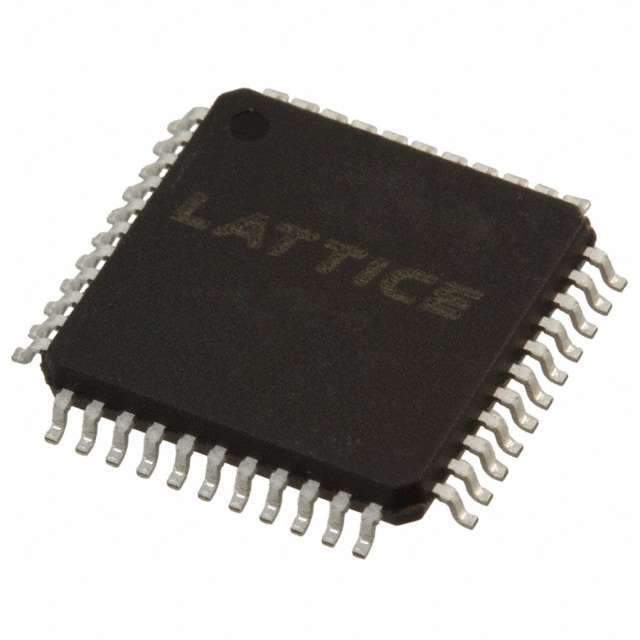

The ISPLSI 2032VE-110LT44 is a Complex Programmable Logic Device (CPLD) manufactured by Lattice Semiconductor Corporation. It's designed for various digital logic applications, offering in-system programmability and a compact form factor. This device provides a versatile solution for implementing custom logic functions and control circuitry.

Applications

• Address decoding
• State machine implementation
• Glue logic for microprocessors
• Peripheral controllers
• Interface logic

Features

• In-System Programmable (ISP): Allows for convenient on-board programming and reprogramming.
• High Performance: Offers a propagation delay of 11ns.
• Flexible Architecture: Accommodates a variety of logic functions and system requirements.
• Low Power Consumption: Designed for energy-efficient operation.
• JEDEC File Compatibility: Supports standard programming formats.
• LT44 Package: Compact package for space-constrained applications.
• 32 Macrocells: Provides sufficient logic capacity for a range of applications.

Benefits

• Reduced Development Time: In-system programmability allows for rapid design iterations and updates.
• Increased System Flexibility: Enables easy adaptation to changing requirements.
• Lower System Cost: Reduces the need for external components and simplifies board design.
• Improved System Performance: High-speed operation enhances overall system efficiency.
• Enhanced System Reliability: Robust design ensures stable and dependable operation.

Additional Details

The ISPLSI 2032VE-110LT44 utilizes a CMOS E2PROM technology for its programmable elements. The device architecture comprises a global routing pool and programmable AND/OR arrays, providing a high degree of flexibility in logic implementation. Programming is performed using a standard JEDEC file format. The LT44 package refers to the physical packaging and pin count of the device. Consult the device datasheet for comprehensive details, including pin assignments, timing specifications, and power requirements. The device requires appropriate power supply decoupling capacitors, located as close to the power pins as possible, for stable operation. Ensure correct thermal management as necessary, particularly under heavy load conditions.
