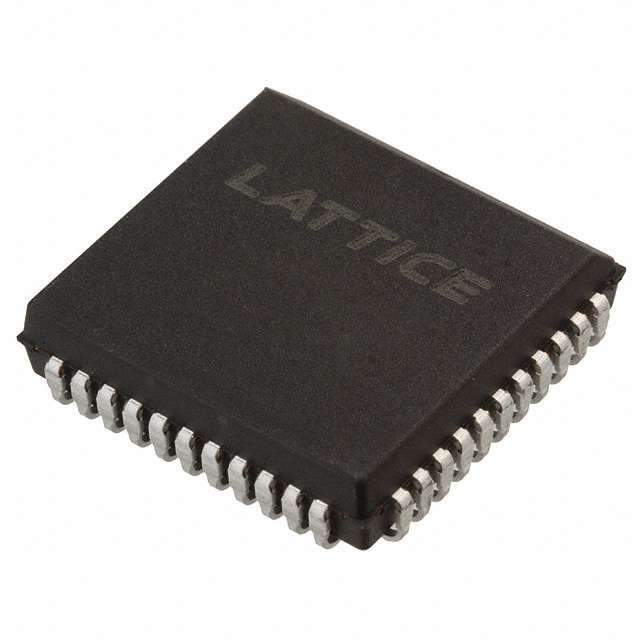

The ispLSI1016E-80LJI is a high-performance, in-system programmable Complex Programmable Logic Device (CPLD) from Lattice Semiconductor. This device offers a flexible and efficient solution for implementing a wide range of digital logic functions. Its in-system programmability allows for easy design modifications and updates without removing the device from the circuit board.

Applications

• Address decoding
• State machine implementation
• Glue logic
• Peripheral control
• Interface logic

Features

• In-System Programmable (ISP): Allows for on-board programming and reprogramming.
• High Performance: Provides fast propagation delays.
• Flexible Architecture: Accommodates a variety of logic functions.
• Low Power Consumption: Reduces overall system power requirements.
• JEDEC File Compatibility: Supports standard programming formats.
• 80 MHz Maximum Frequency: Suitable for high-speed applications.
• Multiple I/O Pins: Provides ample connectivity for external devices.

Benefits

• Reduced Development Time: In-system programmability simplifies design iterations.
• Increased System Flexibility: Allows for easy design modifications and updates.
• Lower System Cost: Reduces the need for external components.
• Improved System Performance: High-speed operation enhances overall system performance.
• Enhanced System Reliability: Robust design ensures stable operation.

Additional Details

The ispLSI1016E-80LJI utilizes a CMOS E2PROM process for its programmable elements. It features a hierarchical architecture consisting of global routing pools and programmable AND/OR arrays. This architecture provides a high degree of flexibility and allows for efficient implementation of complex logic functions. The device is programmed using a standard JEDEC file format. The LJI package indicates the package type. Ensure correct pinout and power supply arrangements are applied when configuring the device.
