Same model may have multiple batches, images only for reference.

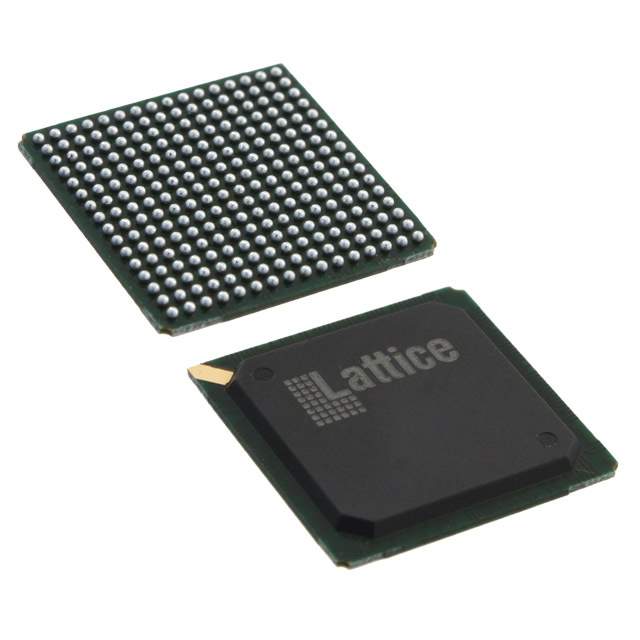

LFE2-20E-6FN256C Real Image
Same model may have multiple batches, images only for reference.

LFE2-20E-6FN256C

Part No LFE2-20E-6FN256C
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 193 I/O 256FBGA / FPGA LatticeECP2 Family 21000 Cells 90nm Technology 1.2V 256-Pin FBGA Tray
Datasheet
LFE2-20E-6FN256C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Lattice Semiconductor Corporation
Series ECP2
Number of LABs/CLBs 2625
Number of Logic Elements/Cells 21000
Total RAM Bits 282624
Number of I/O 193
Operating Supply Voltage 1.14 V ~ 1.26 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 256-BGA
Manufacturer Package 256-FPBGA (17x17)
Win Source Part Number 778499-LFE2-20E-6FN256C
Popularity Medium
Supply and Demand Status Limited
Family Name ECP2-20
Introduction Date February 07, 2006
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian LFE2-20E-6FN256C CAD Model

Description

The Lattice Semiconductor Corporation ECP2 series is a high-performance integrated circuit that is designed for use in a variety of electronic applications.

  • Temperature Range: 0°C to 85°C (TJ)
  • Package: 256-BGA
  • Mounting Type: SMD
  • Operating Voltage: 1.14 V to 1.26 V
  • I/Os: 193
  • LABs/CLBs: 2625
  • Logic Elements/Cells: 21000
  • RAM: 282624 bits
  • Family: ECP2-20
  • Manufacturer Package: 256-FPBGA (17x17)
  • EOL Date: 2026
  • Compliance: Halogen-free
