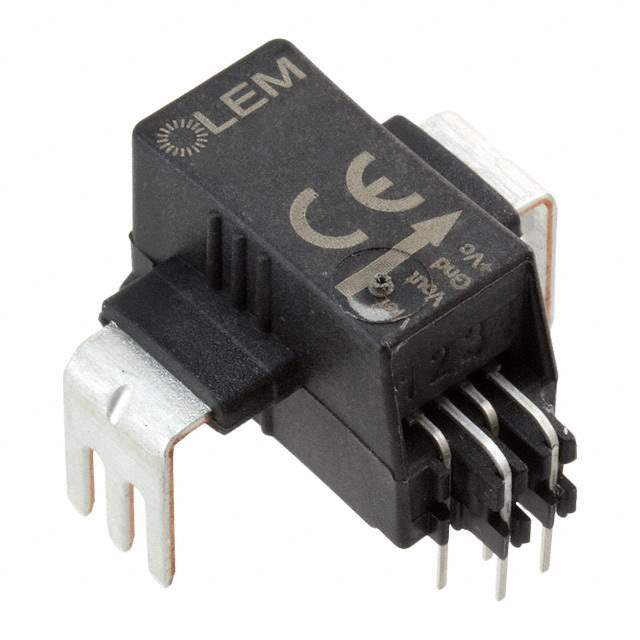

HLSR 50-P Real Image HLSR 50-P Real Image1 HLSR 50-P Real Image2 HLSR 50-P Real Image3
Same model may have multiple batches, images only for reference.
HLSR 50-P Real Image HLSR 50-P Real Image1 HLSR 50-P Real Image2 HLSR 50-P Real Image3
HLSR 50-P Real Image HLSR 50-P Real Image1 HLSR 50-P Real Image2 HLSR 50-P Real Image3
Same model may have multiple batches, images only for reference.

HLSR 50-P

Part No HLSR 50-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 50A AC/DC  /  Current Sensor 50A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr LEM USA Inc.
Series HLSR-P
Package Tray
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 50A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 16mV/A
Frequency 400kHz
Linearity ±0.5%
Accuracy ±1%
Voltage - Supply 5V
Response Time 2.5µs
Current - Supply (Max) 25mA
Temperature Range - Operating -40°C ~ 105°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names 398-1125,90.J3.25.000.0,HLSR50P
Standard Package 50
Win Source Part Number 1128594-HLSR 50-P
Ultra Librarian 3D Model Ultra Librarian HLSR 50-P CAD Model

Description

The HLSR-P current sensor is a bidirectional hall effect, open loop sensor that can measure AC/DC currents up to 50A with a sensitivity of 16mV/A.

  • Sensor Type: Bidirectional hall effect, open loop
  • Current Measurement: AC/DC up to 50A
  • Sensitivity: 16mV/A
  • Response Time: 2.5µs
  • Output: ratiometric voltage
  • Linearity: ±0.5%
  • Accuracy: ±1%
  • Voltage Supply: 5V
  • Maximum Current Supply: 25mA
  • Mounting: through hole
  • Package: module
  • Temperature Range: -40°C to 105°C
  • Application: current sensing in sensors and transducers
