LAX 100-NP LEM USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

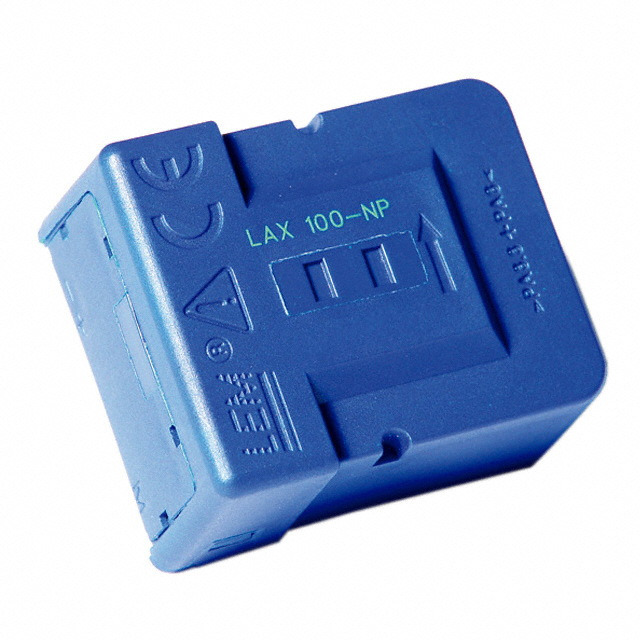

LAX 100-NP

Part No LAX 100-NP
Manufacturer LEM USA Inc.
Catalog Current Sensors
Description SENSOR CURRENT HALL SELECTABLE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, TransducersCurrent Sensors
Mfr LEM USA Inc.
Series LAX
Packaging Tube
Part Status Not For New Designs
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 16.7A, 25A, 33.3A, 50A, 100A (Selectable)
Number of Channels 1
Output Ratiometric, Current
Sensitivity 0.5mA/A
Frequency DC ~ 300kHz
Linearity ±0.1%
Accuracy ±0.91%
Voltage - Supply ±11.4V ~ 15.75V
Response Time 0.2μs
Current - Supply (Max) 62mA
Operating Temperature -40°C ~ 85°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Ultra Librarian 3D Model Ultra Librarian LAX 100-NP CAD Model
