Same model may have multiple batches, images only for reference.

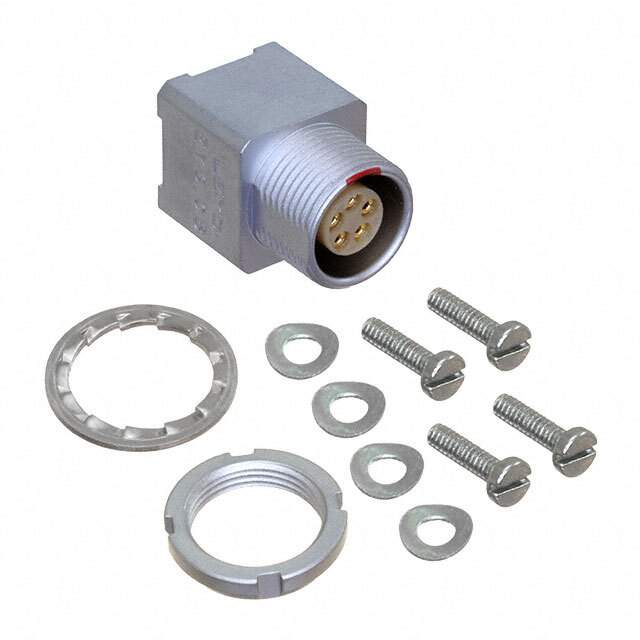

EYG.0B.305.CLN Real Image
Same model may have multiple batches, images only for reference.

EYG.0B.305.CLN

Part No EYG.0B.305.CLN
Manufacturer LEMO
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 5POS GOLD SOLDER / 5 Position Circular Connector Receptacle, Female Sockets Solder
Datasheet
EYG.0B.305.CLN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr LEMO
Series 0B
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 5
Shell Size - Insert 305
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Push-Pull
Orientation G
Primary Material Metal
Shell Material Brass
Shell Finish Chrome
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP50 - Dust Protected
Material Flammability Rating UL94 V-0
Features Board Lock
Shielding Shielded
Current Rating (Amps) 6.5A
Temperature Range - Operating -55°C ~ 250°C
Contact Material Bronze
Contact Finish Thickness - Mating 59.0µin (1.50µm)
Insert Material Polyetheretherketone (PEEK)
Base Product Number EYG.0B
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
California Prop 65 Warning Information
Win Source Part Number 1352270-EYG.0B.305.CLN
Ultra Librarian 3D Model Ultra Librarian EYG.0B.305.CLN CAD Model

Description

The LEMO EYG.0B.305.CLN is a circular connector assembly with a receptacle for female sockets.

  • Connector Type: Receptacle, Female Sockets
  • Number of Positions: 5
  • Shielding: Shielded
  • Ingress Protection: IP50 - Dust Protected
  • Contact Material: Bronze
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 59.0µin (1.50µm)
  • Current Rating: 6.5A
  • Mounting Type: Panel Mount
  • Fastening Type: Through Hole
  • Shell Material: Brass
  • Shell Finish: Chrome
  • Insert Material: Polyetheretherketone (PEEK)
  • Operating Temperature: -55°C ~ 250°C
  • Mounting Feature: Bulkhead - Front Side Nut
