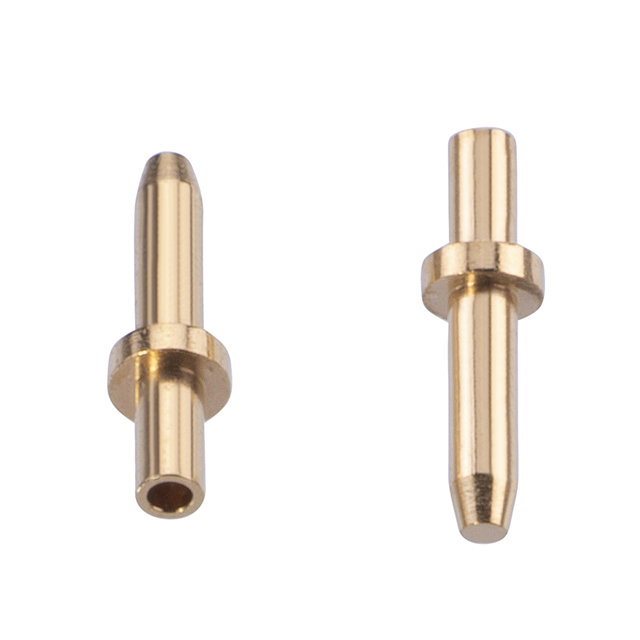

H2174-05 Real Image
Same model may have multiple batches, images only for reference.

H2174-05

Part No H2174-05
Manufacturer Harwin Inc.
Catalog Terminals
Description CONN PC PIN CIRC 0.041DIA GOLD / PC Pin Terminal Connector Through Hole Gold 0.041" (1.04mm) Dia
Datasheet
H2174-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - PC Pin, Single Post Connectors
Mfr Harwin Inc.
Package Bulk
Terminal Type PC Pin
Terminal Style Single End
Pin Size - Above Flange 0.041" (1.04mm) Dia
Length - Above Flange 0.150" (3.81mm)
Length - Below Flange 0.082" (2.08mm)
Length - Overall 0.252" (6.40mm)
Flange Diameter 0.070" (1.77mm)
Mounting Hole Diameter 0.041" ~ 0.045" (1.04mm ~ 1.14mm)
Mounting Type Through Hole
Termination Swage
Insulation Non-Insulated
Board Thickness 0.063" (1.60mm)
Contact Material Brass
Contact Finish Gold
Base Product Number H2174
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1351663-H2174-05
Ultra Librarian 3D Model Ultra Librarian H2174-05 CAD Model

Description

The H2174-05 is a single post connector with a swage termination and gold contact finish.

  • Connector Type: Single Post Connector
  • Termination Style: Swage
  • Contact Finish: Gold
  • Mounting Hole Diameter: 0.041" to 0.045"
  • Flange Diameter: 0.070"
  • Terminal Type: PC Pin
  • Insulation: Non-Insulated
  • Mounting Type: Through-Hole
  • Board Thickness: 0.063"
  • Length: 0.252"
  • Packaging: Bulk
  • Standard Package Quantity: 1,000 pieces
