The LT1506IR-3.3SYNC#PBF is a high-performance, synchronous step-down switching regulator from Linear Technology, designed to deliver a fixed output voltage of 3.3V. This regulator is part of a family of monolithic buck converters that integrate all the essential functions required for a compact and efficient power management solution.

Key Features

• High Efficiency: The synchronous rectification design ensures high efficiency, which is critical for reducing heat dissipation and improving system reliability.
• Fixed 3.3V Output: This regulator provides a stable 3.3V output, making it suitable for a wide range of applications that require a regulated 3.3V power supply.
• Wide Input Voltage Range: It can operate with an input voltage range from 4.5V to 60V, accommodating various power sources and fluctuating input conditions.
• Adjustable Switching Frequency: Users can set the switching frequency from 100kHz to 200kHz through an external resistor, allowing for flexibility in balancing efficiency and component size.
• Low Dropout Operation: The LT1506IR-3.3SYNC#PBF's low dropout capability ensures continued operation even as the input voltage approaches the output voltage, which is critical for battery-operated devices.

Applications

This regulator is ideal for a variety of applications in the industrial, automotive, and telecommunications sectors. It can be used in battery-powered devices, portable instruments, and any other systems that require a high-efficiency, low-voltage power supply.

Protection Features

• Overcurrent Protection: The device features cycle-by-cycle overcurrent protection, safeguarding the regulator and the load from damage due to excessive current.
• Thermal Shutdown: An internal thermal shutdown mechanism protects the device from overheating, ensuring safe operation under high power conditions or ambient temperatures.

Package and Quality

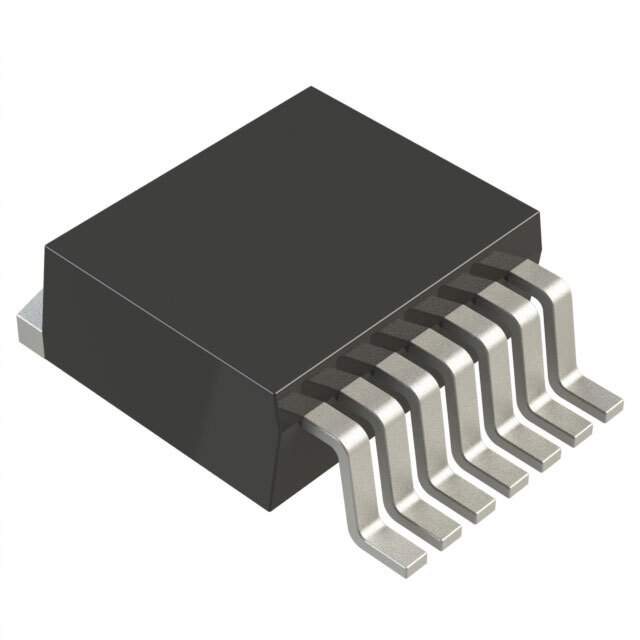

The LT1506IR-3.3SYNC#PBF comes in a robust package designed for optimal thermal performance and space-saving on the PCB. Linear Technology ensures high-quality standards, making this regulator a reliable choice for critical applications where consistent performance is a necessity.
