The LT1800CS5#TRPBF is a high-performance operational amplifier (op amp) from Linear Technology, designed to offer a perfect balance of speed, precision, and power efficiency. This op amp is well-suited for a wide range of applications, including but not limited to, telecommunications, test equipment, and sensor interfaces.

Key Features

• Rail-to-Rail Input and Output: The LT1800CS5#TRPBF can handle input and output signals that extend to both supply rails, which is essential for maximizing dynamic range in low voltage applications.
• High Speed: With a slew rate of 10V/μs and a gain bandwidth product of 80MHz, this op amp is capable of handling fast signal changes, making it ideal for high-speed amplifiers, filters, and data acquisition systems.
• Low Power Consumption: It operates with a supply current of just 2.7mA, which is quite low for its speed class, helping to maintain energy efficiency in battery-powered devices.
• Precision: The LT1800CS5#TRPBF provides excellent DC accuracy, with an input offset voltage of 375μV max and an input bias current of 2nA, ensuring high precision for measurement and control systems.
• Single Supply Operation: This op amp is designed to operate from a single 2.7V to 11V supply or from dual supplies up to ±5.5V, offering design flexibility for various power environments.
• Stable with Capacitive Loads: The ability to drive capacitive loads up to 500pF makes this op amp versatile and robust in applications with variable loads.

Applications

The LT1800CS5#TRPBF's combination of features makes it highly adaptable to a range of applications. It is particularly useful in:

• Active filters
• ADC/DAC buffers
• Telecommunications
• Portable and battery-powered equipment
• Data acquisition systems
• Signal conditioning

Package and Quality

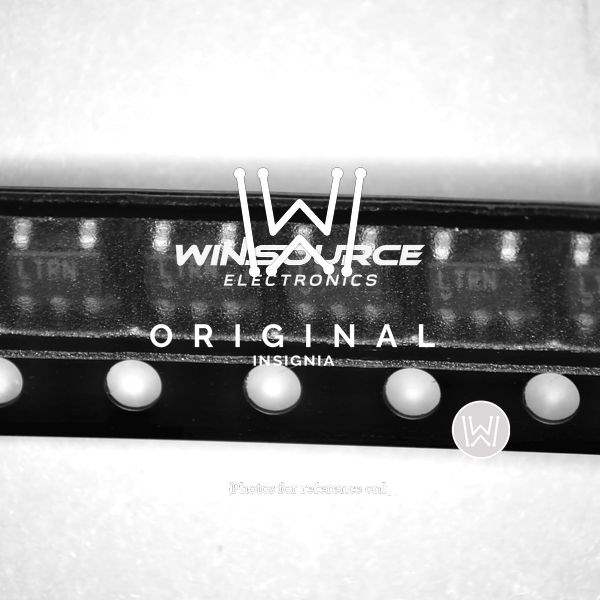

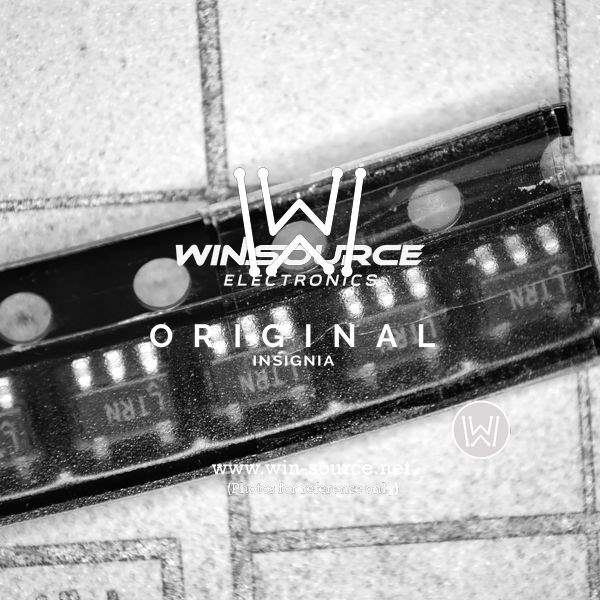

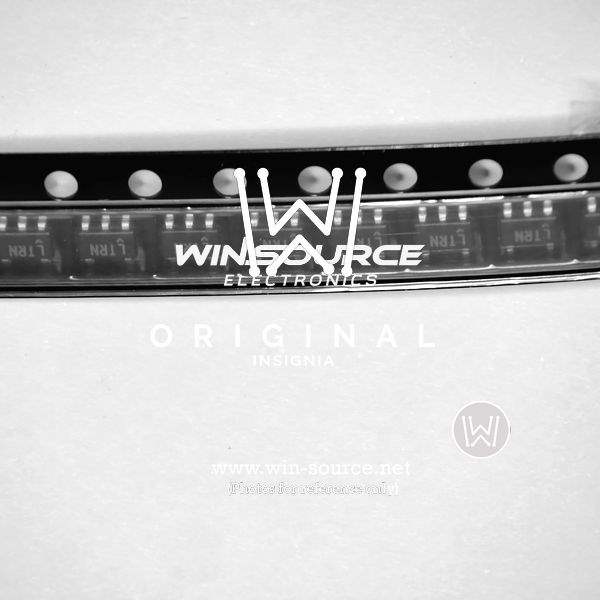

The LT1800CS5#TRPBF comes in a compact SOT-23 5-lead package, which is ideal for space-constrained applications. Linear Technology ensures high reliability and performance of their products, and this op amp is no exception. It is designed to meet the stringent requirements of industrial and commercial applications.
