LT3012BEDE#TRPBF - Low Dropout Linear Regulator

The LT3012BEDE#TRPBF is a high-performance, low dropout linear regulator designed and manufactured by Linear Technology, a brand of Analog Devices known for its precision engineering in power management solutions. This regulator is ideal for a wide range of applications, including automotive, industrial, and telecommunication systems where reliability and efficiency are critical.

Key Features and Benefits

• Wide Input Voltage Range: The LT3012BEDE#TRPBF operates with an input voltage range from 4V to 80V, making it versatile for use in various systems with different power requirements.
• Low Dropout Voltage: The device provides a low dropout voltage, which enhances efficiency by allowing operation closer to the input voltage and reduces power loss.
• Adjustable Output: Users can adjust the output voltage from 1.24V to 60V, providing flexibility for different circuit designs and requirements.
• High Output Current: This regulator can deliver up to 250mA of continuous output current, suitable for a variety of low-power applications.
• Thermal Protection: The built-in thermal protection feature ensures that the device operates within safe temperature limits, enhancing reliability and longevity.
• Stable with Low ESR Capacitors: The LT3012BEDE#TRPBF remains stable with low equivalent series resistance (ESR) capacitors, which can improve performance and reduce noise in the system.

Applications

The LT3012BEDE#TRPBF is well-suited for use in environments that require a stable and reliable power supply. Its features make it an excellent choice for:

• Automotive electronics
• Industrial control systems
• Battery-powered devices
• Power supplies for sensitive electronic equipment
• Telecommunication infrastructure

Quality and Reliability

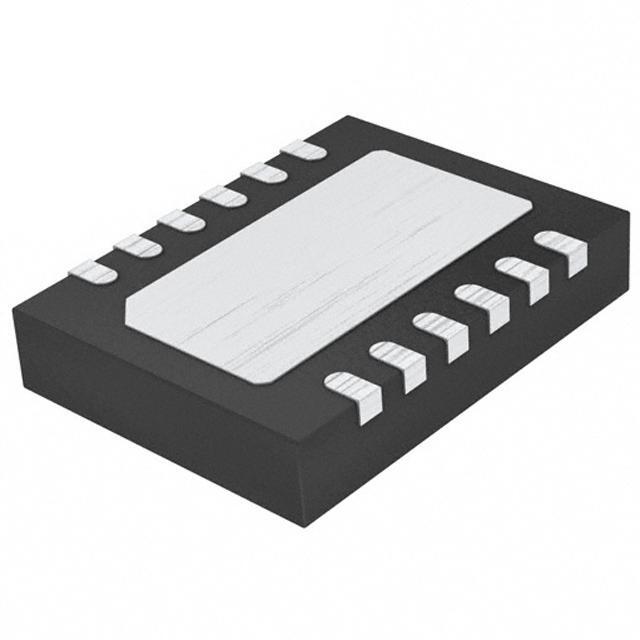

Linear Technology's commitment to quality ensures that the LT3012BEDE#TRPBF maintains high standards of performance and reliability. The device is offered in a 12-lead (4mm × 3mm) DFN package, which is RoHS compliant and designed for surface-mount technology (SMT), facilitating integration into modern PCB designs.

In conclusion, the LT3012BEDE#TRPBF from Linear Technology is a robust and versatile linear regulator that offers a combination of wide input voltage range, low dropout, adjustable output, and high current capability, making it a top choice for engineers and designers looking for a reliable power management solution.
