Products specifications

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 4V
Maximum Input Voltage 40V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 16V
Output Current 250mA
Synchronous Rectifier No
Temperature Range - Operating 0°C to 85°C (TA)
Mounting SMD (SMT)

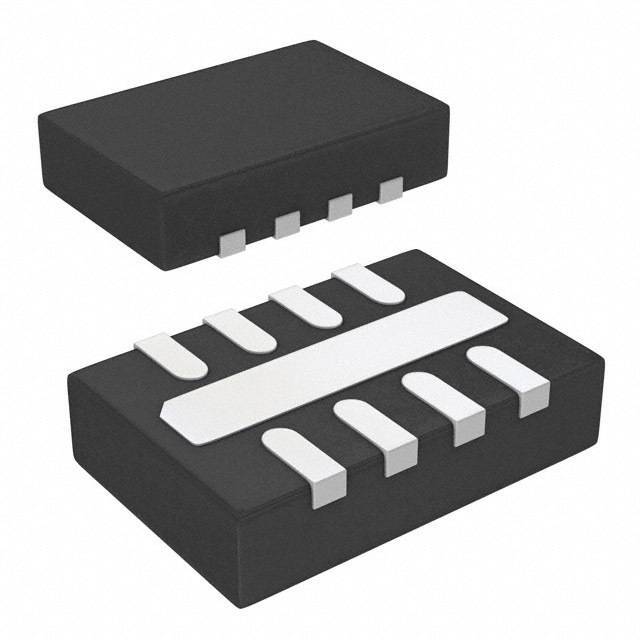

Case / Package 8-DFN (3x2)
Win Source Part Number 94744-LT3470AEDDB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LT3470AEDDB CAD Model

Description

Product Overview: LT3470AEDDB

The LT3470AEDDB is a highly efficient integrated boost converter from Linear Technology, designed to cater to the needs of compact power supply solutions. This robust component is encapsulated in a small 8-lead DFN package, making it an excellent choice for space-constrained applications. It incorporates a low V<sub>CESAT (saturation voltage) bipolar switching transistor and a boost converter topology, which enables the LT3470AEDDB to provide a high-efficiency power conversion.

One of the standout features of the LT3470AEDDB is its wide input voltage range, which spans from 4V to 40V, making it versatile for a variety of applications, from automotive to industrial systems. The device is capable of generating adjustable and fixed output voltages up to 40V, giving designers flexibility in their power supply design.

The LT3470AEDDB boasts an internal 0.5A switch, which allows it to deliver output currents up to several hundred milliamps depending on the input voltage and output voltage settings. This makes it suitable for powering small to medium-sized loads. Additionally, it has a quiescent current of only 7μA, which ensures power efficiency, particularly beneficial for battery-powered devices.

For protection and reliability, the LT3470AEDDB comes with a range of built-in features. It includes current limiting and thermal shutdown, which safeguard the device and the system in adverse conditions. Moreover, the converter's frequency compensation is internally fixed to minimize the number of external components required, simplifying the design process.

Linear Technology has designed the LT3470AEDDB to be user-friendly and easy to implement in a wide array of applications. Whether it's for handheld devices, GPS units, small LCD displays, or portable media players, the LT3470AEDDB offers a compact, efficient, and reliable solution for DC-DC conversion requirements.

Overall, the LT3470AEDDB from Linear Technology represents a blend of performance, efficiency, and convenience, making it an excellent choice for designers looking for a power converter that meets the stringent space and power demands of modern electronic devices.
