Product Overview: LT3507AIUHF#TRPBF

The LT3507AIUHF#TRPBF is a high-performance, triple-channel, current mode PWM step-down DC/DC converter designed by Linear Technology. This robust and efficient integrated circuit is ideal for applications requiring multiple output voltages in automotive, industrial, and distributed power systems.

Each of the three internal regulators is capable of delivering up to 2.5A of continuous output current with a wide input voltage range from 4V to 36V, making it versatile for various power supply configurations. The wide input range also ensures compatibility with a range of supply voltages, including standard 12V and 24V rails.

The LT3507AIUHF#TRPBF features a high switching frequency of up to 2.2MHz, which allows the use of small surface-mount inductors and capacitors, resulting in compact, thermally efficient designs with good transient response. Additionally, the high frequency enables the device to avoid critical noise-sensitive frequency bands such as AM radio bands.

This product boasts independent shutdown and soft-start functions for each channel, providing flexibility and ease of use in sequencing power rails. It also includes a power-good flag and tracking/sequencing capability, which further simplifies the power management in complex systems.

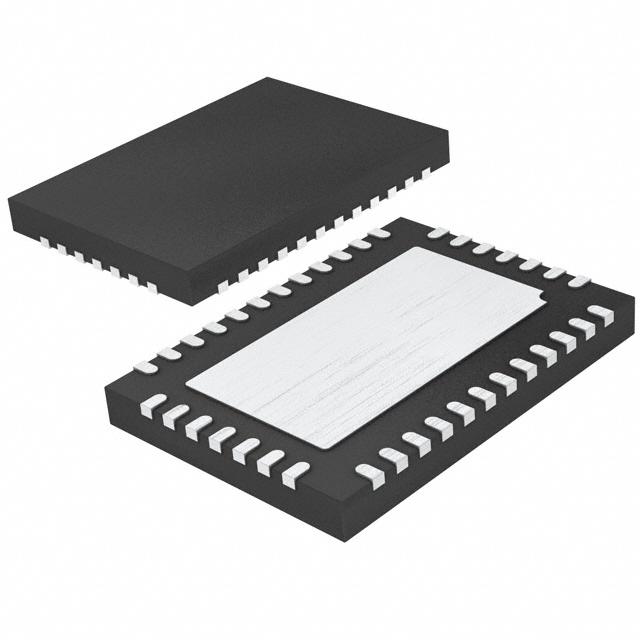

The LT3507AIUHF#TRPBF integrates robust protection features such as cycle-by-cycle current limiting, thermal shutdown, and short-circuit protection, ensuring reliable operation under adverse conditions. Its thermally enhanced 38-lead QFN package allows for efficient heat dissipation, contributing to its reliability and performance longevity.

Overall, the LT3507AIUHF#TRPBF from Linear Technology is an exceptional choice for designers looking for a multi-channel, efficient, and reliable power solution that can simplify the power supply design process while delivering the performance required for demanding applications.
