Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Packaging Tube
Function Step-Up/Step-Down
Output Configuration Positive or Negative, Isolation Capable
Topology Flyback
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 100V
Output Current 420mA
Frequency - Switching 40kHz ~ 650kHz
Synchronous Rectifier No
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting SMD

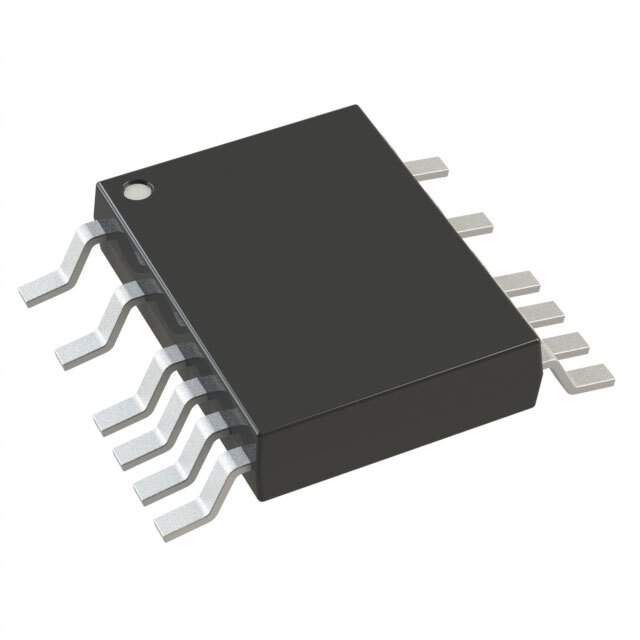

Package 16-TFSOP (0.118", 3.00mm Width), 12 leads
Manufacturer Package 16-MSOP
Win Source Part Number 781104-LT3512IMS#PBF
Popularity Medium
Supply and Demand Status Balance
Family Name LT3512
Introduction Date February 09, 2011
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LT3512IMS#PBF CAD Model

Description

Product Overview: LT3512IMS#PBF

The LT3512IMS#PBF is a high-performance, isolated monolithic flyback converter designed and manufactured by Linear Technology. This integrated circuit is specifically engineered to simplify the design of isolated DC/DC converters. With its wide input voltage range and internal power switch, it caters to a variety of applications, including industrial control systems, medical equipment, and telecommunications infrastructure.

Key Features

  • Wide Input Voltage Range: The LT3512IMS#PBF operates smoothly across a broad input voltage range, accommodating variations in power supply with ease.
  • Integrated 420mA, 700V Power Switch: The inclusion of a high-voltage power switch within the chip's architecture not only reduces external component count but also enhances overall reliability and performance.
  • No Transformer Third Winding or Opto-Isolator Required for Regulation: The innovative design of the LT3512IMS#PBF eliminates the need for additional components typically required for regulation in isolated converters, thereby simplifying the design and reducing overall cost.
  • Programmable Soft-Start Function: This feature allows for controlled ramp-up of the output voltage, which is crucial for preventing inrush current-related issues at startup.
  • Bounded Off-Time Control: The converter maintains a consistent off-time over a range of input voltages, ensuring stable and predictable operation.

Applications

  • Isolated Industrial, Medical, and Telecommunications Power Supplies
  • Isolated Auxiliary/Housekeeping Power Supplies
  • Electricity Metering and Smart Grid Systems

Product Specifications

The LT3512IMS#PBF comes in a compact MSOP-16 package, suitable for space-constrained applications. It features an operating junction temperature range from -40°C to +125°C, making it reliable across a wide range of environmental conditions. The product's high level of integration and ease of use make it a go-to solution for designers seeking a robust and efficient isolated power supply.

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LT3512IMS#PBF is no exception. It meets stringent industry standards for performance and reliability, ensuring that it can handle the demanding requirements of critical systems.
