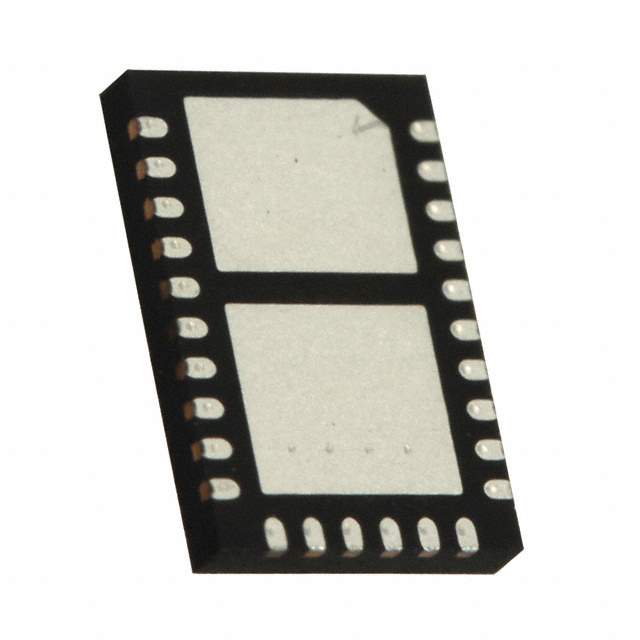

Product Overview: LT3690HUFE#TRPBF

The LT3690HUFE#TRPBF is a high-performance step-down switching regulator from Linear Technology, designed to provide efficient power conversion for a wide range of applications. This versatile component is capable of delivering a continuous output current of up to 3.5A with a voltage range of 3.6V to 36V, making it an ideal choice for systems that require a stable and reliable power supply.

The LT3690HUFE#TRPBF employs a fixed frequency, current mode architecture that provides excellent line and load regulation. It features a frequency range of 300kHz to 2.2MHz, which allows for a compact solution with small external components. The high switching frequency also enables the use of small, low-cost inductors and ceramic capacitors, reducing the overall footprint and cost of the power supply design.

This regulator includes a range of built-in protection features to ensure the safety and longevity of your application. It offers over-temperature protection, over-current protection, and a foldback current limit, all of which contribute to the device's robustness in challenging conditions. Additionally, the LT3690HUFE#TRPBF has a programmable soft-start feature to limit inrush current during startup, further enhancing system stability.

The LT3690HUFE#TRPBF is designed for ease of use and flexibility. It supports a wide variety of external components, enabling designers to optimize their power solutions for specific performance requirements. The regulator's adjustable output voltage can be set with a single resistor, providing additional convenience and flexibility in the design process.

With its thermal performance optimized through the use of a thermally enhanced 16-lead TSSOP package, the LT3690HUFE#TRPBF is suitable for high-temperature environments and can be used in industrial, automotive, and telecommunications equipment. Whether you are designing a power supply for sensitive analog circuits, a robust system for harsh environments, or a compact device with limited space, the LT3690HUFE#TRPBF from Linear Technology is an excellent choice to meet your power regulation needs.

Overall, the LT3690HUFE#TRPBF is a reliable, efficient, and versatile solution for modern electronic systems requiring a high-quality power supply.
