Product Overview: LT3748HMS#TRPBF

The LT3748HMS#TRPBF is a high-performance isolated flyback controller from Linear Technology designed to simplify the process of creating an isolated DC/DC converter without the need for an optocoupler. This device is particularly suitable for applications requiring isolated power supplies within industrial, automotive, medical, and telecommunications sectors.

Key Features

• No Optocoupler Required: The LT3748HMS#TRPBF utilizes an onboard sample-and-hold circuit to accurately regulate the output voltage, eliminating the need for an optocoupler and simplifying the design process.
• Wide Input Voltage Range: This device can operate with an input voltage range from 5V to 100V, making it versatile for various applications and able to handle high voltage transients.
• Programmable Soft-Start: The soft-start feature limits inrush current during startup, providing additional protection and reliability to the power supply design.
• Output Voltage Regulation: It offers excellent output voltage regulation over a wide range of load conditions, ensuring stable performance for sensitive electronic equipment.
• Thermal Protection: The LT3748HMS#TRPBF includes over-temperature protection, safeguarding the device against potential thermal damage during operation.
• Boundary Mode Operation: The controller operates in boundary mode, which is a variable frequency current mode control switching scheme, resulting in high efficiency and reduced EMI emissions.

Applications

The LT3748HMS#TRPBF is ideal for various applications where isolated power supplies are critical. These include:

• Industrial Control Systems
• Automotive Power Systems
• Medical Equipment
• Telecommunications Infrastructure
• Isolated Auxiliary Power Supplies

Product Packaging and Quality

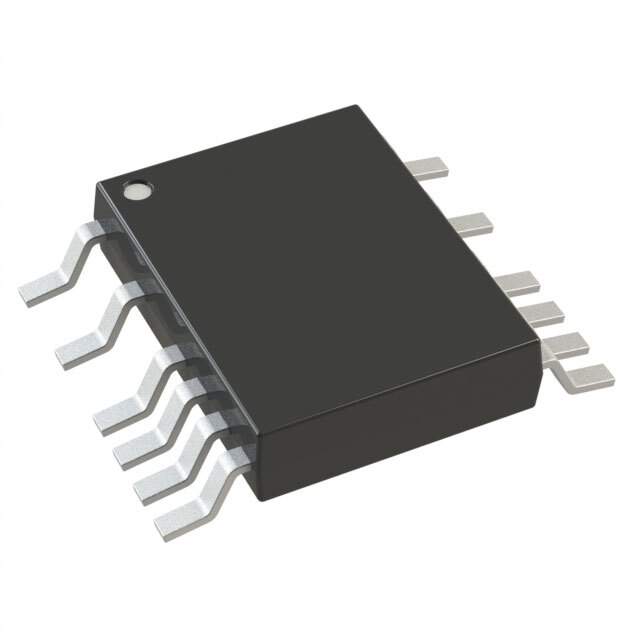

The device is offered in a compact MSOP-16 package, which is suitable for space-constrained applications. The suffix #TRPBF indicates that the product is provided in tape and reel packaging, which is optimized for automated manufacturing processes, and that it is lead-free (Pb-free), adhering to RoHS standards.

In conclusion, the LT3748HMS#TRPBF isolated flyback controller from Linear Technology is a robust and reliable solution for designers looking to implement isolated DC/DC converters with ease and confidence. Its comprehensive feature set and versatile application range make it a strong candidate for a wide array of power supply designs.
