Overview of LT6202HS5#TRPBF

The LT6202HS5#TRPBF is a high-speed, low-noise, low-voltage feedback amplifier from Linear Technology, designed to offer cutting-edge performance for a wide array of electronic applications. This op-amp is ideal for signal conditioning, A/D driver stages, active filters, and high-performance audio systems, delivering exceptional accuracy and dynamic response.

Key Features

• High Speed: With a gain bandwidth product of 100MHz, the LT6202HS5#TRPBF is capable of handling high-frequency signals with ease, making it suitable for fast-operating systems.
• Low Noise: The device boasts an ultra-low input noise voltage, ensuring that signal integrity is maintained even in noise-sensitive applications.
• Low Distortion: It provides very low harmonic distortion, which is essential for high-fidelity audio applications and precision measurement equipment.
• Rail-to-Rail Output: The amplifier supports rail-to-rail output swing, providing the maximum possible dynamic range which is particularly useful in low-voltage applications.
• Single Supply Operation: It operates on a single supply voltage ranging from 2.5V to 5.25V, offering flexibility in various power environments.
• Low Power Consumption: With a quiescent current of just 3.3mA per amplifier, this device is an excellent choice for battery-powered or energy-efficient applications.

Applications

The LT6202HS5#TRPBF is versatile and can be used in numerous applications due to its superior specifications. Some of the common applications include:

• Telecommunications
• Medical instrumentation
• Video and imaging systems
• Test and measurement equipment
• Professional audio equipment
• Data acquisition systems

Package and Quality Assurance

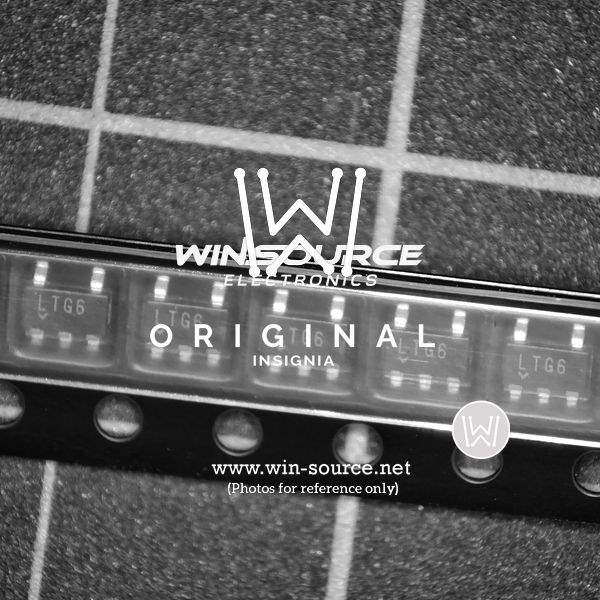

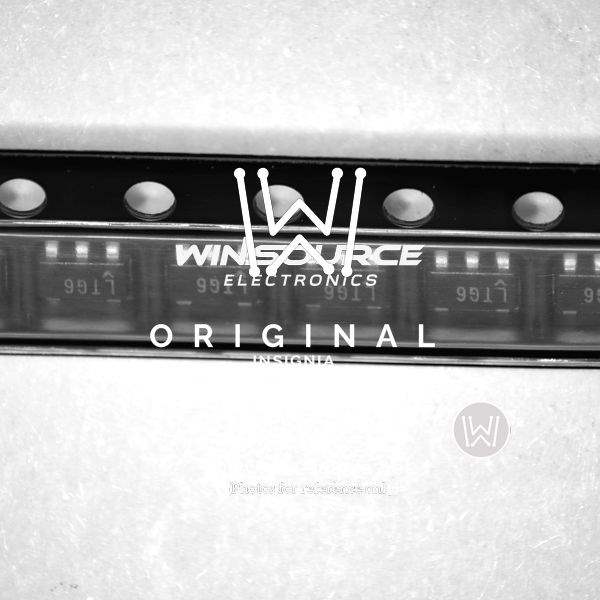

The LT6202HS5#TRPBF is available in a compact SOT-23 package, making it suitable for space-constrained applications. It is also provided in tape and reel packaging (denoted by the #TRPBF suffix), which is ideal for automated assembly processes. Linear Technology ensures high standards of quality and reliability for this product, making it a reliable choice for both commercial and industrial applications.
