The LT8609AIMSE#PBF, from Linear Technology, is a compact, high-efficiency, synchronous monolithic step-down switching regulator that is designed to deliver a continuous output current up to 2A. This product operates over a wide input voltage range from 3.4V to 42V, making it suitable for applications in automotive, industrial, and distributed power systems where a wide input voltage range is common.

Key Features

• High Efficiency: With its synchronous rectification, the LT8609AIMSE#PBF achieves up to 93% efficiency, reducing power loss and heat generation.
• Wide Input Voltage Range: Its 3.4V to 42V input range caters to a variety of supply voltages, particularly beneficial for automotive and industrial environments.
• Low Quiescent Current: Its low quiescent current of 2.5μA in shutdown mode ensures minimal power drain when the device is not in active use.
• Fast Minimum On-Time: The converter features an ultra-fast minimum on-time of just 30ns, enabling large step-down ratios at high switching frequencies, which is ideal for high-performance applications.
• Adjustable Switching Frequency: The switching frequency can be set from 200kHz to 1.5MHz or can be synchronized to an external clock, providing design flexibility.

Protection Features

• Internal Over-Temperature Protection: It includes a thermal protection mechanism that shuts down the regulator to prevent damage under excessive temperature conditions.
• Overvoltage Lockout (OVLO): The OVLO protects the device and the load from overvoltage conditions by turning off the regulator when the input voltage exceeds the set threshold.

Applications

The LT8609AIMSE#PBF is versatile and can be used in a wide array of applications, including:

• Automotive power supplies
• Industrial power systems
• Telecommunications infrastructure
• Distributed DC power systems
• Battery-powered devices

Package and Quality

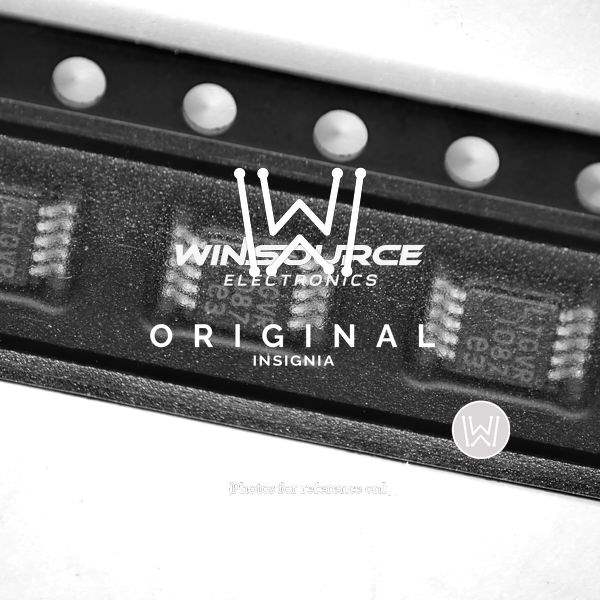

The product is offered in a 10-lead MSOP package with an exposed pad for improved thermal performance. It is also RoHS compliant, ensuring adherence to environmental standards and regulations.
