The LTC1872ES6#TRPBF is a compact, high-efficiency, step-up DC/DC converter from Linear Technology, designed to meet the needs of a variety of portable electronic devices. This component is particularly well-suited for applications that require a small footprint and high performance, such as handheld medical devices, wireless modems, and other battery-operated equipment.

Key Features

• High Frequency Operation: With an operating frequency up to 1.4MHz, the LTC1872ES6#TRPBF allows for the use of small, low-cost capacitors and inductors, reducing the overall size and cost of the power supply design.
• Wide Input Voltage Range: This converter can operate from an input voltage range of 2.6V to 16V, making it versatile for single-cell Li-Ion, multi-cell alkaline, or NiMH applications, as well as fixed 3.3V, 5V, and 12V systems.
• Adjustable Output Voltage: The output voltage is adjustable up to 36V, providing flexibility for a variety of output requirements.
• No Schottky Diode Required: The internal synchronous rectifier eliminates the need for an external Schottky diode, reducing component count and improving efficiency.
• Low Shutdown Current: It features a low shutdown current of under 1µA, which is essential for battery-powered devices where power conservation is critical.

Applications

• Portable Power Devices
• Handheld Instruments
• Medical Devices
• Wireless Modems
• GPS Receivers
• LED Power Supplies

Product Quality and Packaging

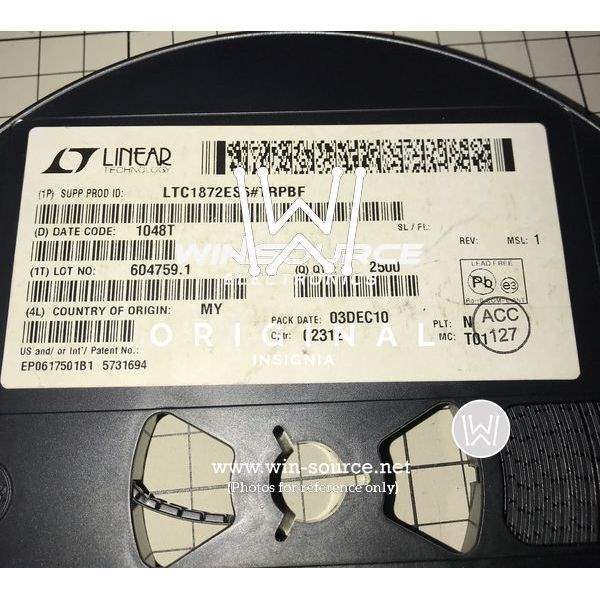

The LTC1872ES6#TRPBF is provided in a compact TSOT-23 package, which is suitable for space-constrained applications. The product is available in tape and reel packaging, making it ideal for automated manufacturing processes. Linear Technology ensures high-quality and reliability of their components, and this DC/DC converter is no exception, offering both performance and durability for sophisticated electronic designs.
