LTC3103EMSE#TRPBF - High Efficiency, Fixed Frequency, Buck-Boost DC/DC Converter

The LTC3103EMSE#TRPBF is a versatile, high efficiency, fixed frequency, buck-boost DC/DC converter designed by Linear Technology, now part of Analog Devices. This integrated circuit is engineered to provide a stable and reliable power supply in applications where the input voltage can be either above or below the output voltage, thus making it an ideal choice for multi-cell battery-powered devices, automotive applications, and industrial equipment.

With its wide input voltage range of 2.4V to 5.5V, the LTC3103EMSE#TRPBF can efficiently manage power in systems that experience significant fluctuations in supply voltage. It is capable of delivering up to 600mA of continuous output current at a fixed output voltage, which can be set by external resistors. The device operates at a fixed switching frequency of 1.2MHz, allowing the use of small, low-profile inductors and capacitors, resulting in a compact power supply solution with minimal external component count.

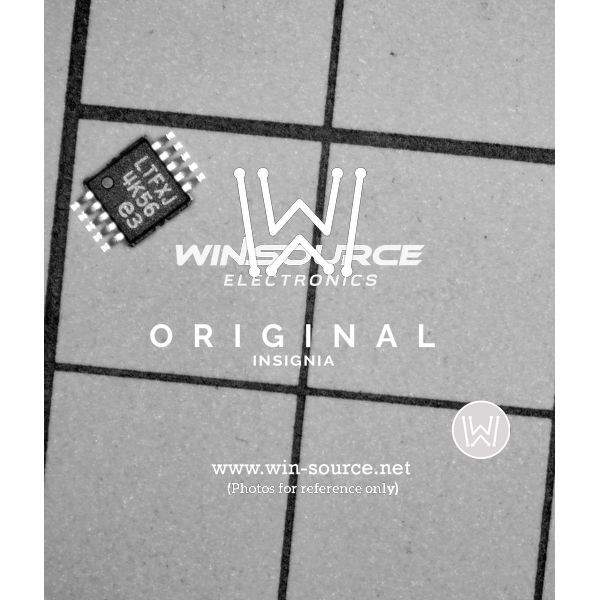

The LTC3103EMSE#TRPBF comes in a thermally efficient 16-lead MSOP package with a lead-free finish, denoted by the #TRPBF suffix, ensuring compliance with RoHS regulations. This package is designed for enhanced thermal performance and space-saving on the PCB.

Key features of the LTC3103EMSE#TRPBF include:

• Highly efficient buck-boost operation
• Adjustable output voltage through external resistors
• Internal soft-start function to limit inrush current during startup
• Low quiescent current for improved battery life in portable applications
• Short-circuit and over-temperature protection for safe operation
• Synchronous rectification for enhanced efficiency
• Power good output signal for power sequencing and monitoring

This product is specifically designed for applications that require a stable output voltage despite varying input conditions. It is particularly well-suited for modern electronic devices that need efficient power management to extend battery life while maintaining performance. The LTC3103EMSE#TRPBF's combination of high efficiency, compact size, and robust protection features make it a reliable choice for designers looking to create sophisticated yet power-conscious electronic systems.
