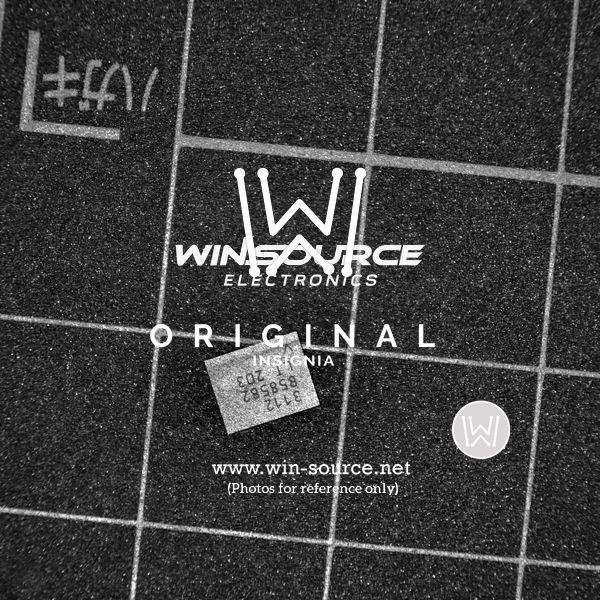

Product Overview: LTC3112EDHD#TRPBF

The LTC3112EDHD#TRPBF is a high-performance, fixed-frequency, synchronous buck-boost DC/DC converter manufactured by Linear Technology, which is now part of Analog Devices. This versatile component is designed to manage power supply requirements for a wide range of applications, ensuring a stable output voltage even when the input voltage fluctuates above or below the output voltage.

Key Features

• Wide Input Voltage Range: The LTC3112EDHD#TRPBF operates over a broad input voltage range of 2.7V to 15V, making it suitable for single-cell Li-Ion, multi-cell alkaline, or NiMH applications, as well as 12V intermediate bus systems.
• Adjustable Output Voltage: Users can set the output voltage from 0.8V to VIN, providing flexibility for various design requirements.
• High Efficiency: With up to 95% efficiency, this converter minimizes power loss, which is crucial for battery-powered devices.
• Programmable Switching Frequency: The device offers a programmable switching frequency from 300kHz to 2MHz, which allows designers to optimize the trade-off between efficiency and external component size.
• Low Noise Operation: The LTC3112EDHD#TRPBF features Burst Mode operation, which reduces noise and ripple, making it ideal for noise-sensitive applications.
• Thermal Performance: Housed in a 16-lead DFN package, the LTC3112EDHD#TRPBF is designed for excellent thermal performance, ensuring reliability even under high power operation.

Applications

The LTC3112EDHD#TRPBF is ideally suited for a wide array of applications, including:

• Portable Instruments
• Industrial Handhelds
• Medical Devices
• Automotive Power Systems
• Point of Load Power Supplies
• Back-Up Power Systems

Quality and Reliability

Linear Technology's commitment to high-quality and reliability is evident in the LTC3112EDHD#TRPBF. This component is designed to meet stringent industry standards, ensuring long-term performance and durability for critical applications. With its robust design and versatile features, the LTC3112EDHD#TRPBF is an excellent choice for designers looking to create efficient, reliable power supply solutions.
