Linear Technology LTC3545IUD-1#PBF Triple Output Synchronous Buck Regulator

The LTC3545IUD-1#PBF is a high-performance, triple output synchronous buck regulator from Linear Technology, designed to provide efficient power management for a wide range of applications. This compact and versatile integrated circuit offers three independent monolithic step-down regulators in a single package, making it an ideal solution for space-constrained environments.

Each of the three channels of the LTC3545 is capable of delivering up to 800mA of continuous output current with a high efficiency of up to 95%. This efficiency is maintained over a wide output current range due to its constant-frequency, current-mode architecture and its ability to operate with a very low dropout voltage. The input voltage range of 2.25V to 5.5V makes it suitable for single Li-Ion, multicell alkaline/NiMH, or other standard power sources.

The LTC3545IUD-1#PBF features a switching frequency of 2.25MHz, which allows for the use of small, low-cost capacitors and inductors while still providing fast transient response and low, predictable output ripple. Each channel has independent enable pins and soft-start capabilities, which not only provide flexibility in controlling the power-up sequencing but also prevent input current surge during startup.

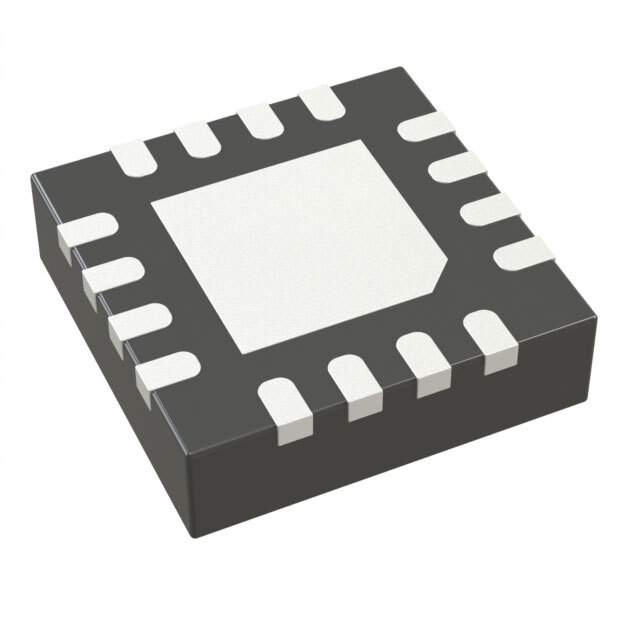

Designed with protection in mind, the LTC3545 includes over-temperature protection and current limiting to safeguard the device and the load under adverse conditions. Furthermore, the device's thermally enhanced 16-lead QFN package ensures efficient heat dissipation, which is critical for maintaining performance and reliability in demanding applications.

Whether it's for portable devices, automotive power supplies, or distributed DC/DC systems, the LTC3545IUD-1#PBF offers a compact, efficient, and reliable solution for powering multiple rails. Its advanced features and robust design make it an excellent choice for engineers looking for a high-quality power management component.

Overall, the LTC3545IUD-1#PBF is a testament to Linear Technology's commitment to providing innovative and high-performance power management solutions that meet the evolving needs of modern electronics.
