Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Linear Technology
Series PowerPath
Packaging Tube
Part Status Obsolete(EOL)
Applications Handheld/Mobile Devices
Operating Supply Current 10μA
Operating Supply Voltage 2.7 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C
Mounting SMD

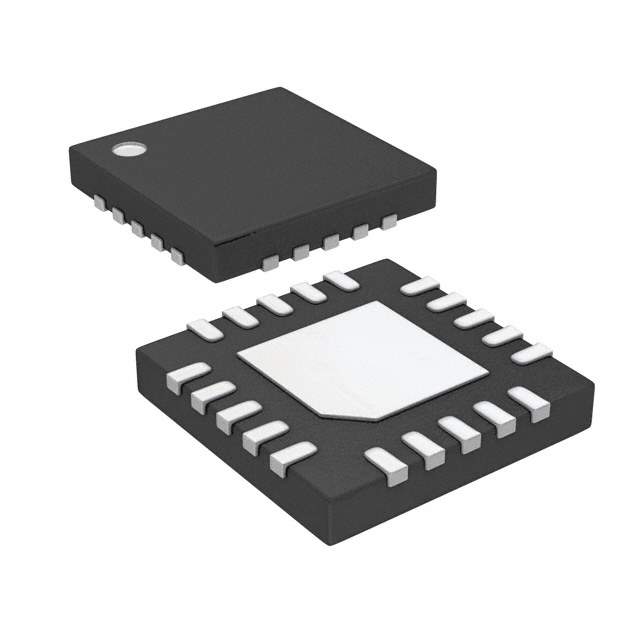

Package 20-UFQFN Exposed Pad
Manufacturer Package 20-UTQFN (3x3)
Win Source Part Number 783415-LTC3554EPD#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTC3554
Introduction Date March 04, 2009
ECCN EAR99
Country of Origin Malaysia, Thailand
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LTC3554EPD#PBF CAD Model

Description

LTC3554EPD#PBF - Integrated Power Management Solution

The LTC3554EPD#PBF is a versatile and efficient integrated power management solution from Linear Technology, designed to cater to the demanding requirements of portable electronic devices. This compact, multifunctional component integrates a lithium-ion/polymer battery charger, a synchronous step-down converter, and two low dropout regulators (LDOs), all in a space-saving, low-profile (0.75mm) 20-lead 4mm x 4mm QFN package.

Key Features:

  • High Efficiency: The LTC3554EPD#PBF boasts a high-efficiency synchronous buck converter with up to 95% efficiency, ensuring minimal power loss during operation and extending battery life in portable applications.
  • Programmable Charge Rate: The integrated battery charger supports programmable charge rates with a maximum charge current of up to 950mA, allowing for fast and efficient charging of the battery.
  • Dual LDO Regulators: It includes two LDOs with low noise characteristics and a low dropout voltage, providing clean and stable power to sensitive circuits such as RF and audio components.
  • PowerPath Control: The LTC3554EPD#PBF features PowerPath control, which seamlessly manages power distribution between the battery and external sources, ensuring uninterrupted operation even when the battery is being charged.
  • Thermal Protection: Thermal regulation circuitry is built-in to protect the device from overheating, enhancing system reliability and safety.
  • USB-Compatible: The device is USB-compatible, supporting the USB input current limit, making it ideal for portable devices that require charging via a USB port.

Applications:

The LTC3554EPD#PBF is suitable for a wide range of portable applications, including but not limited to:

  • Smartphones and PDAs
  • Portable Media Players
  • Handheld GPS Systems
  • Digital Cameras
  • Medical and Healthcare Devices

With its robust feature set and compact design, the LTC3554EPD#PBF from Linear Technology provides designers with an efficient, integrated power management solution that minimizes board space and simplifies the design of power systems for portable electronic devices.
