Introducing the LTC3560ES6 from Linear Technology

The LTC3560ES6 is a highly efficient, compact, and versatile synchronous buck regulator designed by Linear Technology for modern electronics. This advanced power management integrated circuit (PMIC) is engineered to meet the rigorous demands of portable and space-constrained devices.

Key Features

• High Efficiency: The LTC3560ES6 boasts an impressive efficiency that maximizes battery life, making it ideal for battery-powered applications.
• Wide Input Voltage Range: With an input voltage range of 2.5V to 5.5V, this regulator can accommodate a variety of power sources, from single-cell Li-Ion batteries to multi-cell alkaline batteries.
• Adjustable Output Voltage: Users can set the output voltage from 0.6V to VIN, ensuring flexibility across different loads and conditions.
• High Frequency Operation: Operating at a switching frequency of up to 2.25MHz, the LTC3560ES6 allows the use of small, low-cost capacitors and inductors, thus reducing the overall solution footprint.
• Low Quiescent Current: The device features a low quiescent current, which is critical for extending battery life in portable applications.

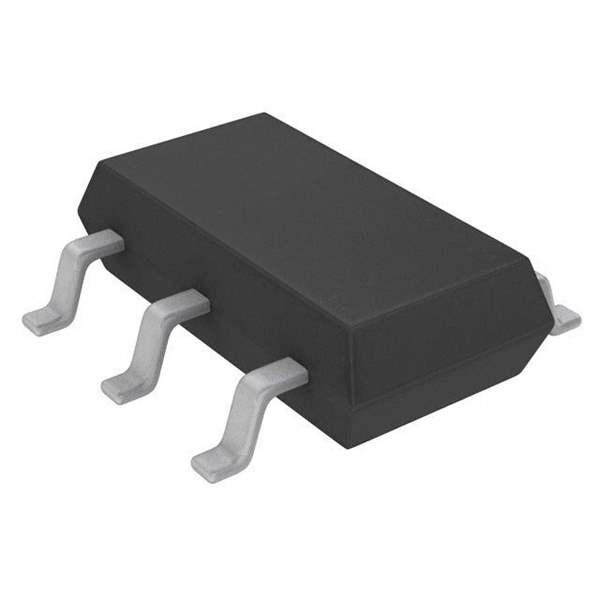

• Robust Thermal Performance: Packaged in a thermally efficient 6-lead ThinSOT, the LTC3560ES6 is capable of dissipating heat effectively, enhancing system reliability.

Applications

The LTC3560ES6 is versatile and can be used in a broad range of applications, including:

• Portable medical devices
• Wireless modems
• Handheld instruments
• GPS receivers
• MP3 players
• Cameras and digital imaging devices

Protection Features

Safety and reliability are paramount in power management. The LTC3560ES6 incorporates several protection features:

• Overtemperature Protection: The device shuts down if the internal temperature exceeds safe operating limits.
• Current Limit Protection: To prevent damage from overcurrent conditions, the LTC3560ES6 includes a current limit feature.
• Low Dropout Operation: The regulator is designed for low dropout performance, ensuring continuous operation even when the input voltage is close to the output voltage.

Overall, the LTC3560ES6 from Linear Technology is a powerful solution for designers looking to maximize power efficiency and minimize space in their next-generation portable devices.
