Linear Technology's LTC3611EWP#TRPBF: High-Performance, Monolithic Synchronous Buck Regulator

The LTC3611EWP#TRPBF is a high-efficiency, synchronous step-down DC/DC converter designed by Linear Technology, a renowned leader in the field of power management solutions. This advanced regulator is capable of delivering up to 12A of continuous output current at voltages as low as 0.6V, making it an ideal choice for power-sensitive applications that require a compact, high-performance power supply solution.

Key Features:

• High Efficiency: With its synchronous rectification architecture, the LTC3611EWP#TRPBF achieves efficiency levels of up to 95%, minimizing heat generation and power loss in demanding applications.
• Wide Input Voltage Range: The device operates from an input voltage range of 4.5V to 24V, accommodating a variety of power sources including intermediate bus voltages and battery-powered applications.
• Adjustable Output Voltage: The output voltage is adjustable down to 0.6V with a tight regulation accuracy, allowing for precise power delivery tailored to specific circuit requirements.
• High-Frequency Operation: The LTC3611EWP#TRPBF supports switching frequencies up to 4MHz, enabling the use of small, low-cost capacitors and inductors, which reduces overall solution size and improves transient response.

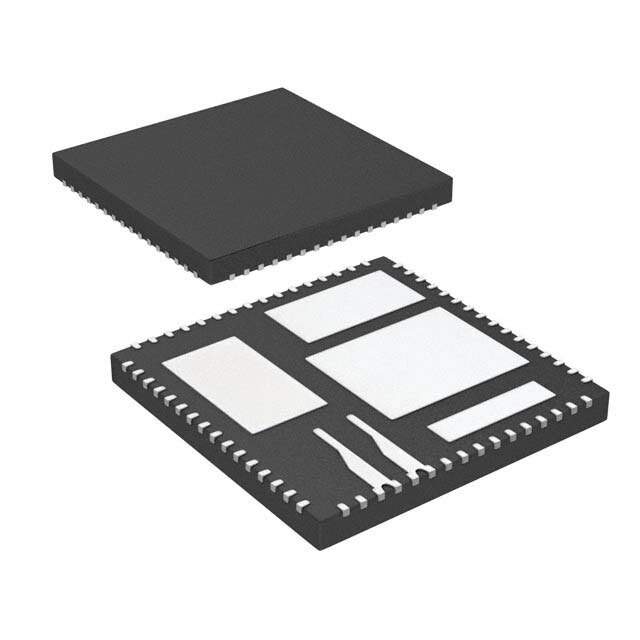

• Robust Thermal Performance: Enclosed in a thermally enhanced 64-lead QFN package, the LTC3611EWP#TRPBF is designed for optimal heat dissipation, ensuring reliable performance even in environments with limited airflow.

Applications:

The LTC3611EWP#TRPBF is versatile and can be used in a wide range of applications, including:

• Telecommunications infrastructure
• Networking equipment
• Industrial systems
• High-density distributed power systems
• Point-of-load applications

Advanced Features:

This regulator integrates several advanced features that enhance its performance and ease of use:

• Programmable Soft-Start: To minimize inrush current and ensure a controlled startup, the LTC3611EWP#TRPBF offers a programmable soft-start feature.
• Power Good Output: A 'power good' output signal provides a simple method for monitoring the health of the output voltage, simplifying power sequencing and system diagnostics.
• Current Mode Operation: The current mode control architecture ensures fast transient response and excellent loop stability.
• Overvoltage Protection: Built-in overvoltage protection helps safeguard the device and the downstream circuitry from potential damage due to voltage spikes.

With its robust design and comprehensive feature set, the LTC3611EWP#TRPBF from Linear Technology stands out as a top-tier power management solution for engineers looking to optimize power efficiency and performance in their next-generation electronic systems.
