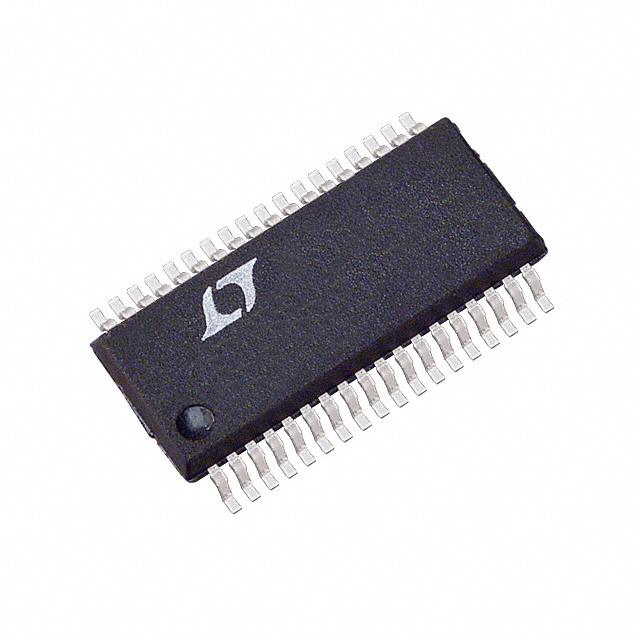

LTC3716EG#TRPBF

Part No LTC3716EG#TRPBF
Manufacturer Linear Technology
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 36SSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
Output Type Transistor Driver
Purpose Step-Down
Topology Buck
Number of Outputs 2
Output Phases 2
Supply Voltage - Operating 4 V to 36 V
Frequency - Switching 140kHz to 310kHz
Duty Cycle (Max) 99.5%
Synchronous Rectifier Yes
Clock Sync No
Control Features Enable, Power Good, Soft Start
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 36-SSOP
Win Source Part Number 303384-LTC3716EG#TRPBF
Ultra Librarian 3D Model Ultra Librarian LTC3716EG#TRPBF CAD Model

Description

Product Overview: LTC3716EG#TRPBF

The LTC3716EG#TRPBF is a high-performance, synchronous step-down switching regulator controller designed and manufactured by Linear Technology, a company renowned for its expertise in analog integrated circuits and power management solutions. This advanced controller is tailored to meet the demanding requirements of modern electronics, providing efficient power conversion for applications such as point-of-load supplies, distributed power systems, and portable devices.

Key Features

  • Versatile Input Voltage Range: The LTC3716EG#TRPBF operates over a wide input voltage range, making it suitable for a variety of supply voltages.
  • High Efficiency: With its synchronous operation, the controller minimizes power losses and enhances efficiency, which is crucial for battery-powered applications and thermal management.
  • Adjustable Switching Frequency: The device allows for an adjustable switching frequency, providing flexibility to optimize for efficiency or component size.
  • Robust Protection Features: It includes overcurrent protection, overvoltage protection, and thermal shutdown, ensuring reliable operation and longevity of the end application.
  • Compact Package: Housed in a compact SSOP-16 package, the LTC3716EG#TRPBF saves valuable board space while still delivering robust power management.

Applications

The LTC3716EG#TRPBF's versatility makes it an ideal choice for a wide range of applications, including:

  • Telecommunications infrastructure
  • Networking equipment
  • Servers and data centers
  • Industrial systems
  • Portable electronic devices

Technical Specifications

The device boasts a strong set of technical specifications:

  • Operating Temperature Range: -40°C to 85°C
  • Package Type: SSOP-16
  • RoHS Compliant: Yes

The LTC3716EG#TRPBF is a testament to Linear Technology's commitment to providing cutting-edge power management solutions that combine performance, efficiency, and reliability. By integrating this controller into your design, you can achieve a high-efficiency power supply that meets the stringent demands of today's electronic devices.
