LTC3736EUF Dual 2-Phase Synchronous Step-Down Switching Regulator

The LTC3736EUF from Linear Technology is a high-performance, dual 2-phase synchronous step-down switching regulator that is designed to provide precise voltage regulation in a compact package. It is a versatile power management solution suitable for a wide range of applications, including distributed power systems, networking equipment, and industrial electronics.

This regulator incorporates two independent channels, each capable of producing an output voltage as low as 0.6V with a maximum output current of up to 6A per channel. Its 2-phase operation significantly reduces the required input and output capacitance, providing a smaller, more efficient solution.

Featuring a wide input voltage range from 4V to 36V, the LTC3736EUF is ideal for systems that encounter wide variations in supply voltage. This makes it particularly well-suited for automotive and industrial applications where supply voltage can be unpredictable.

The LTC3736EUF utilizes a constant-frequency, current mode architecture with a programmable frequency from 250kHz to 750kHz, allowing the use of small inductors and capacitors to achieve a compact power supply solution. For noise-sensitive applications, the phase-lockable frequency can be set from 250kHz to 550kHz with an external clock.

Additional features of the LTC3736EUF include independent track/soft-start pins for each channel, which provide flexibility in controlling the power-up sequencing. Overvoltage protection ensures the safety of the load by limiting the output voltage during transients. The device also offers overcurrent protection and thermal shutdown for reliable operation under fault conditions.

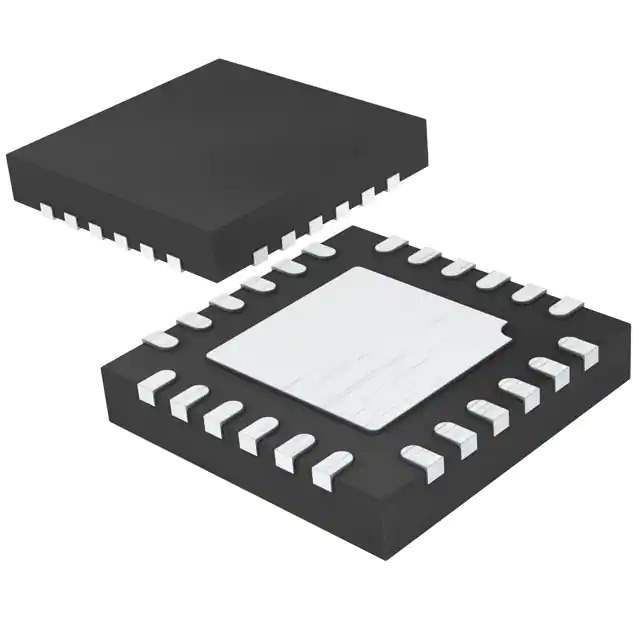

The LTC3736EUF is available in a 24-lead QFN package, providing a thermally efficient footprint that is suitable for space-constrained applications. With its robust feature set and compact design, the LTC3736EUF is an excellent choice for designers looking to optimize their power supply designs for performance and size.

Overall, the LTC3736EUF from Linear Technology is a powerful, dual-channel regulator that offers precision, efficiency, and reliability for a variety of demanding applications.
