Product Overview: LTC5509ESC6#TRPBF

The LTC5509ESC6#TRPBF is a high-performance RF power detector manufactured by Linear Technology. It is designed to provide precise and reliable measurement of RF signal power within the frequency range of 300MHz to 7GHz. This makes it an ideal choice for a wide array of applications, including cellular base stations, wireless infrastructure, RF test equipment, and personal communication systems.

One of the key features of this product is its ability to detect signal power from -34dBm to 6dBm, providing a dynamic range of 40dB. The LTC5509ESC6#TRPBF operates with a single supply voltage ranging from 2.7V to 6V, making it versatile for various system power requirements. Additionally, it offers an exceptional temperature stability, ensuring consistent performance across different operating conditions.

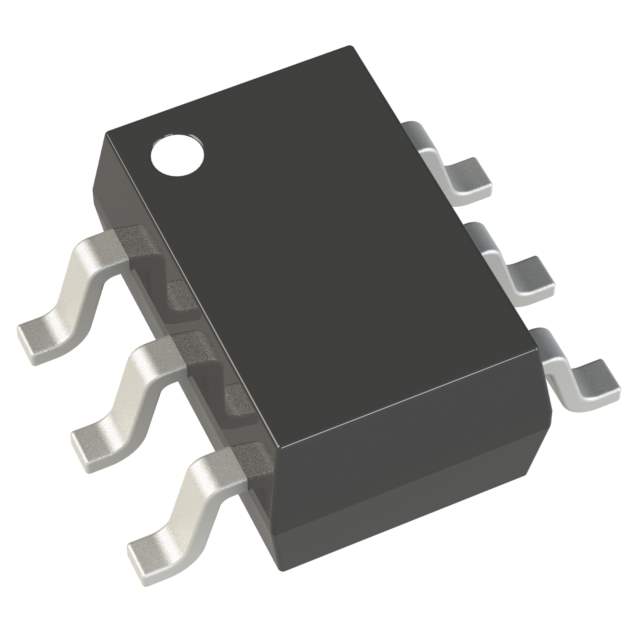

The power detector comes in a compact, low-profile (1mm) SC70-6 package, which is highly suitable for space-constrained applications. Its small form factor does not compromise its functionality, as it still delivers fast response times and integrates a shutdown feature that reduces power consumption when the device is not in active use.

Moreover, the LTC5509ESC6#TRPBF exhibits a linear-in-dB response, which simplifies the conversion between input power and detected voltage, allowing for easier analog-to-digital conversions in digital systems. This linearity reduces the complexity of subsequent signal processing and improves the accuracy of power measurements.

For design flexibility, the product does not require any external components for operation, although it is compatible with external input matching components to optimize performance for specific applications. This feature streamlines the design process and accelerates time-to-market for products incorporating this power detector.

In summary, the LTC5509ESC6#TRPBF from Linear Technology stands out as a reliable and versatile RF power detector, offering a combination of wide frequency range, dynamic power detection, and compact packaging. It is engineered to meet the stringent requirements of modern RF systems, ensuring accurate power detection for both analog and digital signal processing applications.
