LTC6803HG-1#TRPBF - High Voltage Battery Monitor

The LTC6803HG-1#TRPBF is an advanced high voltage battery monitor integrated circuit (IC) from Linear Technology, designed to provide precise monitoring and balancing functionalities for rechargeable battery stacks. It is particularly suitable for electric vehicles (EVs), hybrid electric vehicles (HEVs), and large-scale energy storage systems, where accurate battery management is critical for safety, efficiency, and longevity.

This IC is capable of monitoring up to 12 series-connected battery cells with a total measurement error under 0.25%. It can measure cell voltages from 0V to 5V, making it compatible with various battery chemistries, including Lithium-Ion, Lithium-Polymer, and Lithium Iron Phosphate. The LTC6803HG-1#TRPBF is designed to operate within the industrial temperature range of -40°C to 125°C, ensuring reliable performance under extreme conditions.

One of the standout features of the LTC6803HG-1#TRPBF is its ability to daisy-chain multiple devices, which allows for the simultaneous monitoring of a large number of cells in high voltage battery stacks. This is achieved through a proprietary 1Mbps high voltage isolation SPI interface, which ensures robust communication between ICs in the presence of the high voltage differentials typically found in these applications.

The device also includes passive cell balancing transistors for each cell, which are used to bleed off excess charge and ensure that all cells within the stack maintain similar charge levels. This cell balancing function is critical for maximizing the life and performance of the battery stack.

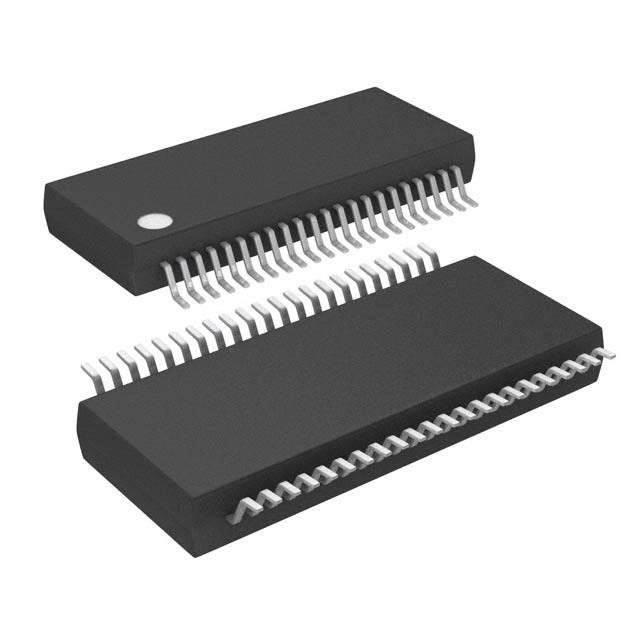

For enhanced safety, the LTC6803HG-1#TRPBF features a range of self-test and diagnostic functions, including open wire detection, which helps identify and alert the system to potential issues before they become critical. The IC comes in a compact, heat-resistant surface-mount package, which is RoHS compliant and suitable for automated assembly processes.

Overall, the LTC6803HG-1#TRPBF from Linear Technology represents a sophisticated solution for high-accuracy battery monitoring and management, ensuring the safety and efficiency of high voltage battery systems in demanding applications.
