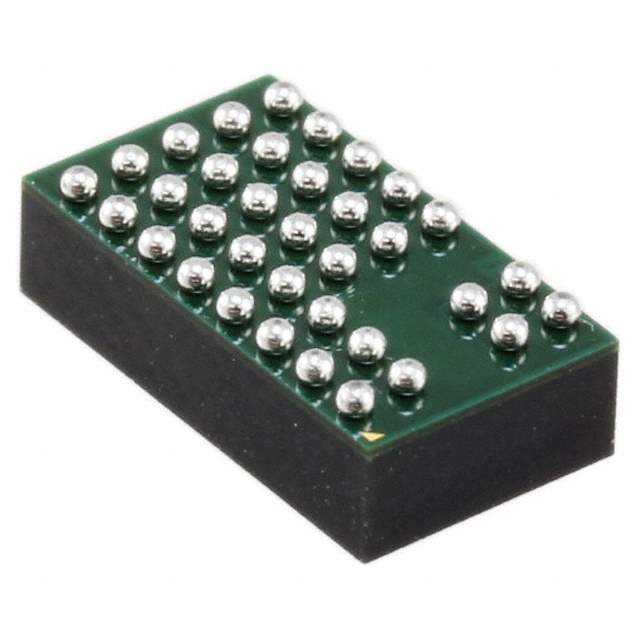

Linear Technology LTM8029IY#PBF Power Module

The LTM8029IY#PBF from Linear Technology is an advanced power module designed to cater to a wide range of voltage regulation requirements in electronic devices. This high-efficiency, step-down DC/DC µModule (micromodule) regulator is capable of delivering up to 10A of continuous output current. It operates over an input voltage range of 4.5V to 36V, making it suitable for applications involving a broad spectrum of power sources.

One of the key features of the LTM8029IY#PBF is its Silent Switcher® architecture, which minimizes EMI emissions, a critical consideration for noise-sensitive applications such as precision instrumentation, telecommunications, and industrial controls. This power module integrates the inductor, power switches, and all support components, thereby simplifying the design process and saving valuable board space.

The LTM8029IY#PBF offers an adjustable output voltage range from 0.8V to 24V, providing flexibility for various output requirements. It also includes a selectable switching frequency from 200kHz to 400kHz, which can be synchronized to an external clock within the same range for noise-sensitive applications. Additionally, the module supports phase-lockable frequency (250kHz to 410kHz), further enhancing its versatility.

Thermal management is a critical aspect of power module performance. The LTM8029IY#PBF is designed with a high level of thermal performance, featuring an internal temperature sensor and over-temperature protection. Its robust construction ensures reliable operation over a temperature range of -40°C to +125°C, making it suitable for use in harsh environments.

For safety and protection, the module includes features such as overvoltage and overcurrent protection. The LTM8029IY#PBF is RoHS compliant, adhering to environmental standards. It comes in a compact (15mm x 15mm x 4.32mm) BGA package that is suitable for automated assembly processes, streamlining the manufacturing of the end product.

Overall, the LTM8029IY#PBF is an all-in-one power solution that combines performance, efficiency, and ease of use, making it an ideal choice for designers looking to optimize their power supply systems with minimal effort.
